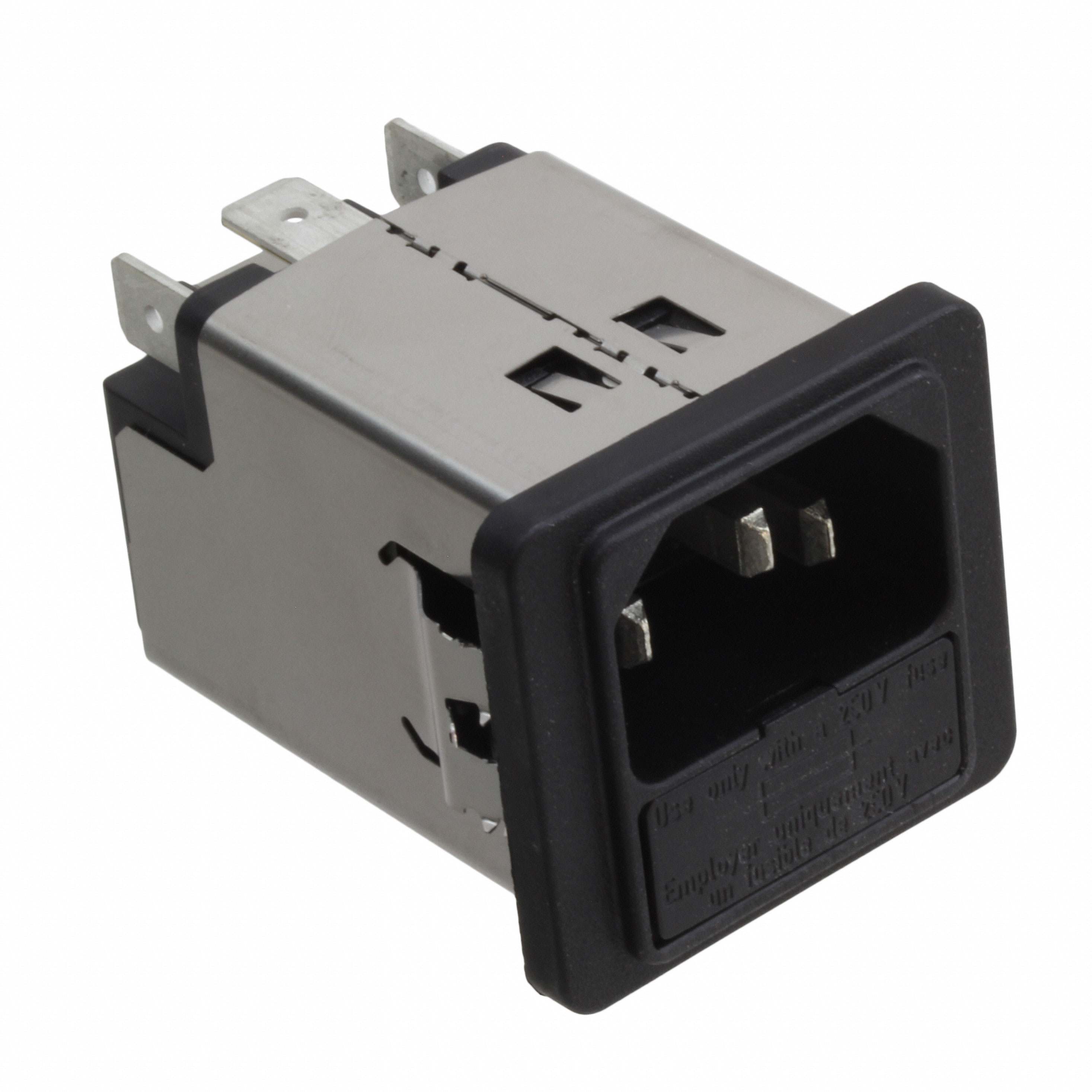

5200.0423.5

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 QC

Technical Specifications

Parameters and characteristics for this part

Specification	5200.0423.5

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	4 A
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	32 mm
Panel Cutout Dimensions [y]	29 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Termination	Termination	Ingress Protection	Fuse Holder, Drawer	Connector Style	Approval Agency	Material Flammability Rating	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Connector Type	Mounting Type	Current Rating - Filter	Filter Type
SCHURTER Inc. 5200.0423.5	0.25 in	6.3 mm	Quick Connect	IP40	Fuse Holder	IEC 320-C14	cULus ENEC	UL94 V-0		32 mm	29 mm	4 A	250 VAC	Receptacle Male Blades - Module
SCHURTER Inc. 5200.0423.3	0.25 in	6.3 mm	Quick Connect	IP40	Fuse Holder	IEC 320-C14	cULus ENEC	UL94 V-0		32 mm	29 mm	4 A	250 VAC	Receptacle Male Blades - Module	Flange Panel Mount	4 A	Filtered (EMI RFI) - Commercial Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
