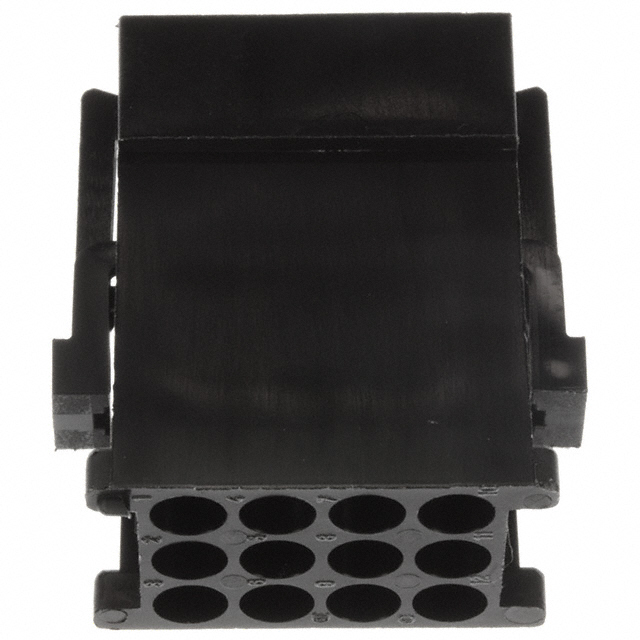

SMS12P-1

Unknown

Souriau-Sunbank by Eaton

CONN PLUG HSG 12POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

SMS12P-1

Unknown

Souriau-Sunbank by Eaton

CONN PLUG HSG 12POS 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS12P-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Row Spacing	5.08 mm
Row Spacing	0.2 in

SMS12 Series

Part	For Use With/Related Products	Accessory Type	Number of Positions	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Style	Ingress Protection	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions Loaded	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Rows	Color	Contact Termination	Pitch [x]	Pitch [x]	Insulation Material	Row Spacing	Row Spacing	Note	Shrouding	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post
Souriau-Sunbank by Eaton SMS12H1	SMS Series	Strain Relief	12
Souriau-Sunbank by Eaton SMS12GE3			12	Gold	5.08 mm	0.2 "	Mounting Flange	Circular	Black	5.08 mm	0.2 in	Female Socket	Through Hole	Board to Board Cable	IP40	UL94 V-0	7.5 A	105 ░C	-55 °C	Receptacle	All	Copper Alloy	0.134 in	3.4 mm	Solder	16 Áin	0.41 Ám	Locking Ramp
Souriau-Sunbank by Eaton SMS12P-1			12									Male Pin	Free Hanging (In-Line)					105 ░C	-40 °C	Plug								Latch Holder	3	Black	Crimp	0.2 in	5.08 mm	Polyamide (PA66) Nylon 6/6	5.08 mm	0.2 in	Contacts Not Included
Souriau-Sunbank by Eaton SMS12R-1			12									Female Socket	Panel Mount Snap-In					105 ░C	-40 °C	Receptacle								Latch Lock	3	Black	Crimp	0.2 in	5.08 mm	Polyamide (PA66) Nylon 6/6	5.08 mm	0.2 in	Contacts Not Included
Souriau-Sunbank by Eaton SMS12GE6			12	Gold	5.08 mm	0.2 "	Mounting Flange	Circular	Black	5.08 mm	0.2 in	Male Pin	Through Hole Right Angle	Board to Cable/Wire	IP40	UL94 V-0	7.5 A	105 ░C	-55 °C	Header	All	Brass			Solder	16 Áin	0.41 Ám	Locking Ramp						Polyester Glass Filled				Unshrouded	17.2 mm	0.677 in	0.28 in	7.11 mm	0.177 in	4.5 mm
Souriau-Sunbank by Eaton SMS12GE5			12	Gold	5.08 mm	0.2 "	Mounting Flange	Circular	Black	5.08 mm	0.2 in	Female Socket	Through Hole Right Angle	Board to Board Cable	IP40	UL94 V-0	7.5 A	105 ░C	-55 °C	Receptacle	All	Copper Alloy			Solder	16 Áin	0.41 Ám	Locking Ramp											17.2 mm	0.677 in			0.177 in	4.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.05
		10	$ 1.78
		25	$ 1.70
		50	$ 1.67
		100	$ 1.59
		250	$ 1.44
		500	$ 1.33
		1000	$ 1.14
		2500	$ 1.06

Description

General part information

SMS12 Series

12 Rectangular Connectors - Housings Plug Black 0.200" (5.08mm)
