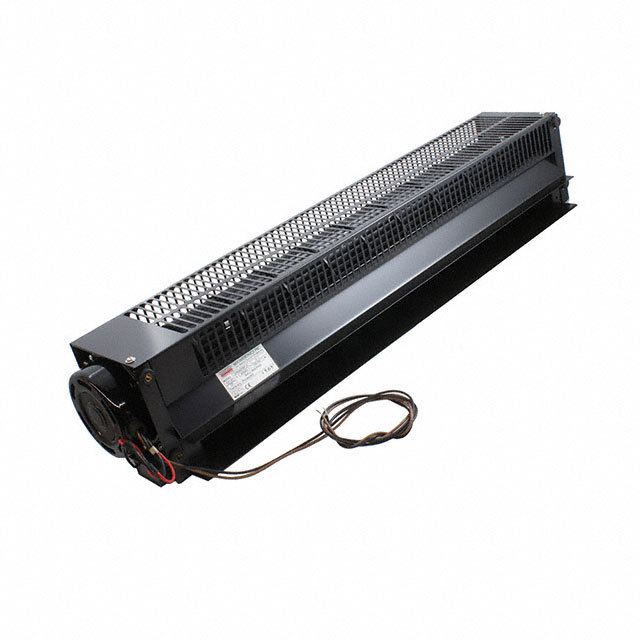

UF9060CBP12H-L

Active

Mechatronics Bearing Group

FAN BLWR CF 120VAC 740X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLWR CF 120VAC 740X150X130MM

Technical Specifications

Parameters and characteristics for this part

Specification	UF9060CBP12H-L

Air Flow	530 CFM
Air Flow	14.84 mł/min
Approval Agency	CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.25 A
Fan Type	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum
Material - Frame	Steel
Noise	54 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	160 W
RPM	2100 RPM
Size / Dimension [x]	740 mm
Size / Dimension [z]	130 mm
Static Pressure	107.1 Pa
Static Pressure	0.43 in H2O
Termination	2 Wire Leads
Voltage - Rated	120 VAC
Weight	11 lbs
Weight	5 kg
Width [y]	125 mm

Part	Weight	Weight	Bearing Type	Features	Noise	Current Rating (Amps)	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Static Pressure	Static Pressure	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Termination	Fan Type	Approval Agency	Width [y]	Voltage - Rated	RPM
Mechatronics Bearing Group UF9060CBP23H-L	11 lbs	5 kg	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	54 dB	0.7 A	Aluminum	70 °C	70 °C	-40 °C	-40 °C	Steel	107.1 Pa	0.43 in H2O	530 CFM	14.84 mł/min	740 mm	130 mm	160 W	2 Wire Leads	Blower Cross Flow	CE TUV	125 mm	230 VAC	2100 RPM
Mechatronics Bearing Group UF9060CBP12H-L	11 lbs	5 kg	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	54 dB	1.25 A	Aluminum	70 °C	70 °C	-40 °C	-40 °C	Steel	107.1 Pa	0.43 in H2O	530 CFM	14.84 mł/min	740 mm	130 mm	160 W	2 Wire Leads	Blower Cross Flow	CE TUV	125 mm	120 VAC	2100 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 120VAC Rectangular - 740mm L x 130mm H Ball 530.0 CFM (14.84m³/min) 2 Wire Leads
