UCD7201PWP
ActiveDIGITAL CONTROL COMPATIBLE DUAL LOW SIDE +/- 4A MOSFET DRIVER WITH SINGLE COMMON CURRENT SENSE
Deep-Dive with AI
Search across all available documentation for this part.
UCD7201PWP
ActiveDIGITAL CONTROL COMPATIBLE DUAL LOW SIDE +/- 4A MOSFET DRIVER WITH SINGLE COMMON CURRENT SENSE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCD7201PWP |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Driven Configuration | Low-Side |
| Gate Type | N-Channel MOSFET |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH | 2.08 V, 1.16 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [custom] | -40 °C, 105 °C |

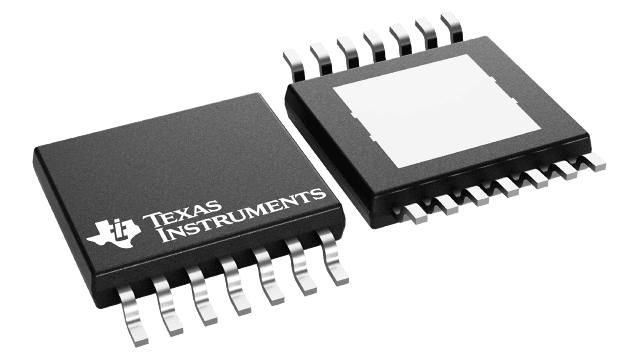

| Package / Case | 14-PowerTSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Rise / Fall Time (Typ) [custom] | 10 ns |
| Rise / Fall Time (Typ) [custom] | 10 ns |
| Supplier Device Package | 14-HTSSOP |
| Voltage - Supply [Max] | 15 V |
| Voltage - Supply [Min] | 4.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 90 | $ 3.14 | |
| Digikey | Tube | 630 | $ 2.95 | |
| Texas Instruments | TUBE | 1 | $ 3.56 | |
| 100 | $ 3.12 | |||
| 250 | $ 2.18 | |||
| 1000 | $ 1.76 | |||
Description
General part information
UCD7201 Series
The UCD7201 is a member of the UCD7K family of digital control compatible drivers for applications utilizing digital control techniques or applications requiring fast local peak current limit protection.
The UCD7201 includes dual low-side ±4-A high- current MOSFET gate drivers. It allows the digital power controllers such as UCD9110 or UCD9501 to interface to the power stage in double ended topologies. It provides a cycle-by-cycle current limit function for both driver channels, a programmable threshold and a digital output current limit flag which can be monitored by the host controller. With a fast cycle-by-cycle current limit protection, the driver can turn off the power stage in the event of an overcurrent condition.
The UCD7201 is a member of the UCD7K family of digital control compatible drivers for applications utilizing digital control techniques or applications requiring fast local peak current limit protection.
