111121000222GQTAF9LM
ActiveKnowles Johanson Manufacturing

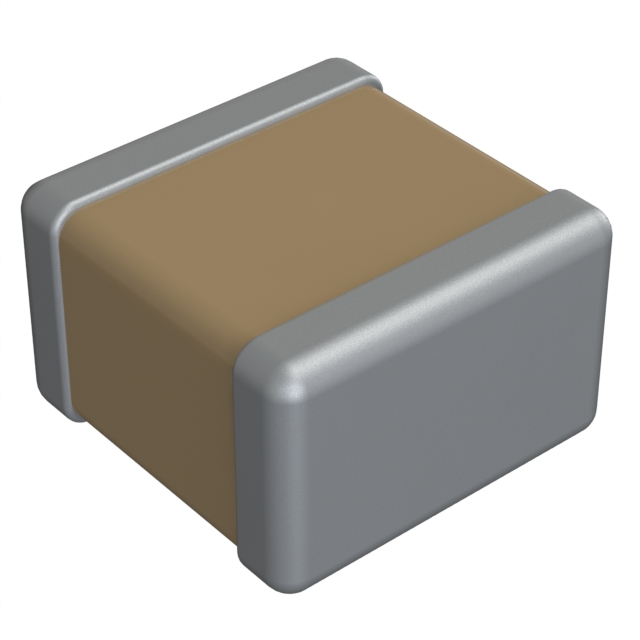

CAP CER 2200PF 100V C0G/NP0 1111
Deep-Dive with AI
Search across all available documentation for this part.
111121000222GQTAF9LM
ActiveKnowles Johanson Manufacturing
CAP CER 2200PF 100V C0G/NP0 1111
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 111121000222GQTAF9LM |
|---|---|
| Applications | High Frequency, Microwave, RF |
| Capacitance | 2200 pF |
| Features | High Q, Non-Magnetic, Low Loss |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension [x] | 2.79 mm |
| Size / Dimension [x] | 0.11 in |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.79 mm |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 1.78 mm |
| Thickness (Max) [Max] | 0.07 in |
| Tolerance | 2 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.08 | |
| 10 | $ 2.02 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.45 | |||
| 500 | $ 1.23 | |||
| Digi-Reel® | 1 | $ 3.08 | ||
| 10 | $ 2.02 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.45 | |||
| 500 | $ 1.23 | |||
| Tape & Reel (TR) | 1000 | $ 1.15 | ||
| 2000 | $ 1.10 | |||
| 3000 | $ 1.07 | |||
| 5000 | $ 1.03 | |||
| 7000 | $ 1.01 | |||
| 10000 | $ 0.99 | |||
Description
General part information
11112100 Series
2200 pF ±2% 100V Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
Documents
Technical documentation and resources
No documents available
