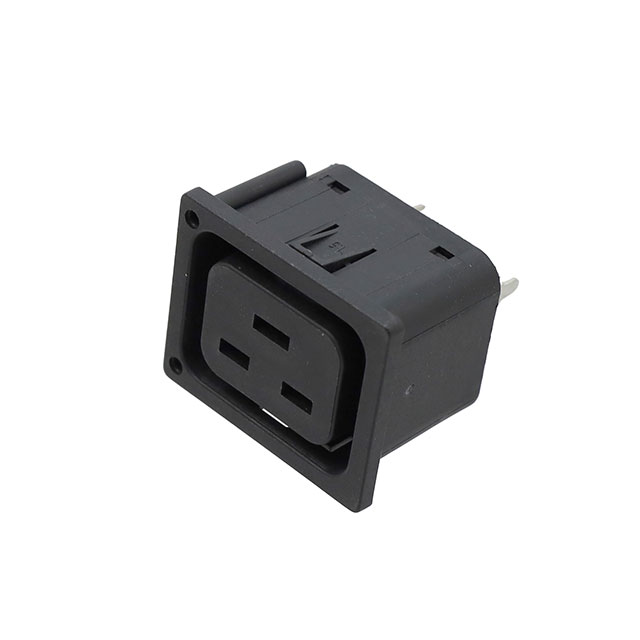

4710-5733-0110-115-1100

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-2-2J PNL IDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-2-2J PNL IDC

Technical Specifications

Parameters and characteristics for this part

Specification	4710-5733-0110-115-1100

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	16 A
Features	V-Lock Notch, Terminating Cover
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	37.6 mm
Panel Cutout Dimensions [y]	29.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	IDC
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Accomodates a Fuse	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Filter Type	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Connector Type	Features	Material Flammability Rating	Panel Thickness	Panel Thickness
SCHURTER Inc. 4710-5733-0110-115-1100	CCC cURus ENEC		250 VAC	16 A	Unfiltered - Commercial	Panel Mount Snap-In	0.059 in	1.5 mm	37.6 mm	29.5 mm	IDC	Receptacle Female Sockets	Terminating Cover V-Lock Notch	UL94 V-0
SCHURTER Inc. 4710-5722-0011-220-1100	CCC cURus ENEC		250 VAC	16 A	Unfiltered - Commercial	Panel Mount Snap-In			37.6 mm	29.5 mm	IDC	Receptacle Female Sockets	Terminating Cover V-Lock Notch	UL94 V-0	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/J Panel Mount, Snap-In
