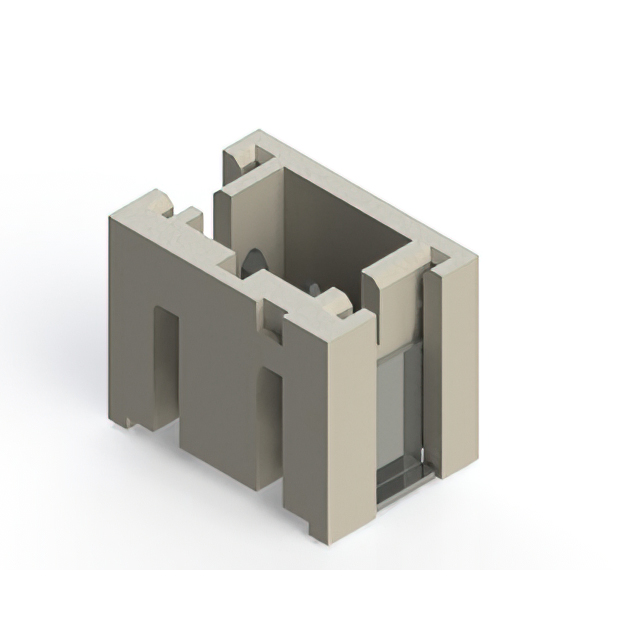

140-502-417-011

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 2 SUR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-502-417-011

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 2 SUR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	140-502-417-011

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

140-502 Series

Part	Contact Shape	Contact Finish - Post	Fastening Type	Number of Positions	Number of Rows	Voltage Rating	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Style	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Material	Termination	Connector Type	Shrouding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Height [custom]	Insulation Height [custom]
EDAC Inc. 140-502-415-100	Square	Tin	Detent Lock	2	1	100 VAC	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	Natural	All	2 A	0.185 in	4.7 mm	Brass	Solder	Header	Shrouded - 4 Wall	Male Pin	-40 °C	105 ░C
EDAC Inc. 140-502-415-001	Square	Tin	Detent Lock	2	1	100 VAC	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Through Hole	Board to Cable/Wire	UL94 V-0	Natural	All	2 A	0.24 in	6.1 mm	Brass	Kinked Pin Solder	Header	Shrouded - 4 Wall	Male Pin	-40 °C	105 ░C
EDAC Inc. 140-502-415-101	Square	Tin	Detent Lock	2	1	100 VAC	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Through Hole	Board to Cable/Wire	UL94 V-0	Natural	All	2 A	0.24 in	6.1 mm	Brass	Solder	Header	Shrouded - 4 Wall	Male Pin	-40 °C	105 ░C
EDAC Inc. 140-502-417-011	Square	Tin	Detent Lock	2	1	100 VAC	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Surface Mount	Board to Cable/Wire	UL94 V-0	Natural	All	2 A			Brass	Solder	Header	Shrouded - 4 Wall	Male Pin	-40 °C	105 ░C	Solder Retention	5.51 mm	0.217 in
EDAC Inc. 140-502-417-060	Square	Tin	Detent Lock	2	1	100 VAC	Nylon 9T Polyamide (PA9T)	0.079 in	2 mm	Surface Mount Right Angle	Board to Cable/Wire	UL94 V-0	Natural	All	2 A			Brass	Solder	Header	Shrouded - 4 Wall	Male Pin	-25 °C	85 °C	Solder Retention	5.51 mm	0.217 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.48
		10	$ 0.42
		25	$ 0.39
		50	$ 0.36
		100	$ 0.35
		250	$ 0.32
	Digi-Reel®	1	$ 0.48
		10	$ 0.42
		25	$ 0.39
		50	$ 0.36
		100	$ 0.35
		250	$ 0.32
	Tape & Reel (TR)	700	$ 0.30
		1400	$ 0.25
		2100	$ 0.24
		3500	$ 0.23
		4900	$ 0.22
		17500	$ 0.20
		35000	$ 0.20

Description

General part information

140-502 Series

Connector Header Surface Mount 2 position 0.079" (2.00mm)
