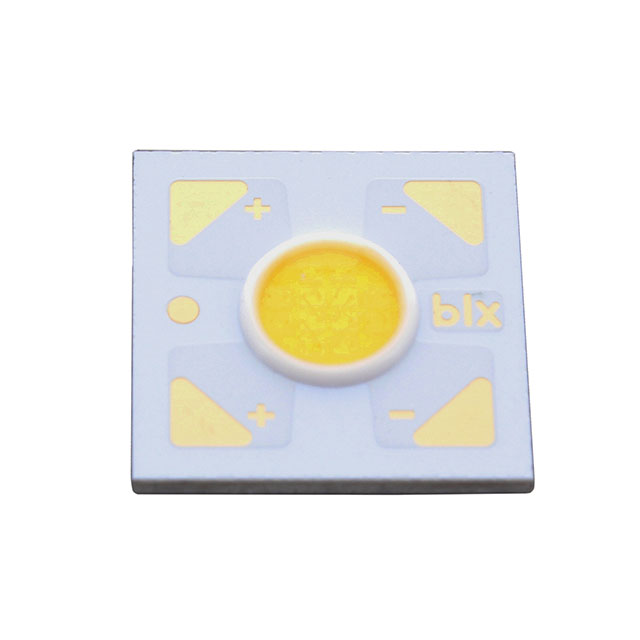

BXRH-57S0601-A-74

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 5700K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 5700K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-57S0601-A-74

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	98
Current - Max [Max]	240 mA
Current - Test	175 mA
Height [z]	1.63 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	4.5 mm
Lumens/Watt @ Current - Test	106 lm/W
Luminous Flux @ Current/Temperature	675 lm
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	12.5 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36.4 V

Part	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Type	Configuration	CCT (K)	Color	Viewing Angle	Luminous Flux @ Current/Temperature	Lens Type	Height [z]	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Current - Max [Max]	Current - Test	Size / Dimension [x]	Size / Dimension [y]
BRIDGELUX BXRH-57S1001-G-73	18.2 V	98	Chip On Board (COB)	Square	5700 K	Cool White	120 °	1401 lm	Flat	1.63 mm	6.6 mm	110 lm/W	960 mA
BRIDGELUX BXRH-57S0601-A-74	36.4 V	98	Chip On Board (COB)	Square	5700 K	Cool White	120 °	675 lm	Flat	1.63 mm	4.5 mm	106 lm/W	240 mA	175 mA	12.5 mm	12.5 mm
BRIDGELUX BXRH-57S1001-B-74	36.4 V	98	Chip On Board (COB)	Square	5700 K	Cool White	120 °	1401 lm	Flat	1.63 mm	6.6 mm	110 lm/W	480 mA	350 mA
BRIDGELUX BXRH-57S1001-G-74	18.2 V	98	Chip On Board (COB)	Square	5700 K	Cool White	120 °	1401 lm	Flat	1.63 mm	6.6 mm	110 lm/W	960 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.76

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) V4 HD Thrive™ Array White, Cool Square
