UF2006CT_T0_00001

Active

Panjit International Inc.

ULTRA FAST RECOVERY RECTIFIERS

Search across all available documentation for this part.

Active

Panjit International Inc.

ULTRA FAST RECOVERY RECTIFIERS

Technical Specifications

Parameters and characteristics for this part

Specification	UF2006CT_T0_00001

Current - Average Rectified (Io) (per Diode)	20 A
Current - Reverse Leakage @ Vr	1 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C

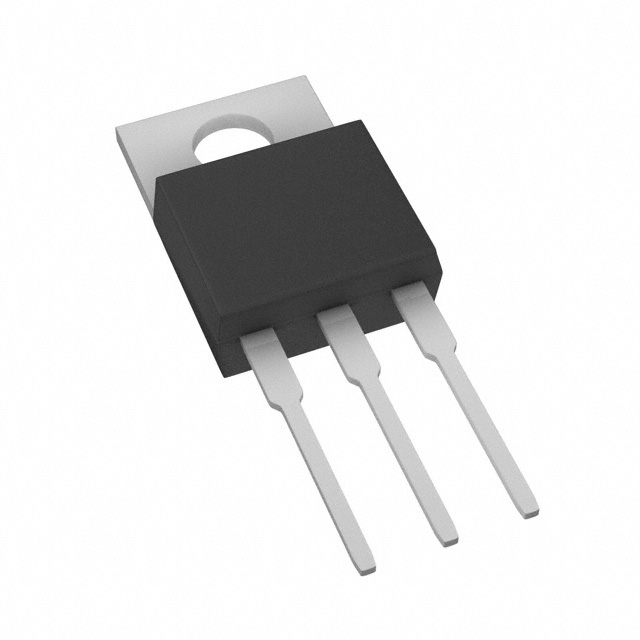

Package / Case	TO-220-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Speed	Technology	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Diode Configuration
Panjit International Inc. UF2006CT_T0_00001	200 mA 500 ns	Standard	TO-220AB	600 V	150 °C	-65 C	20 A	TO-220-3	1 µA	1.7 V	Through Hole	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 600 V 20A Through Hole TO-220-3
