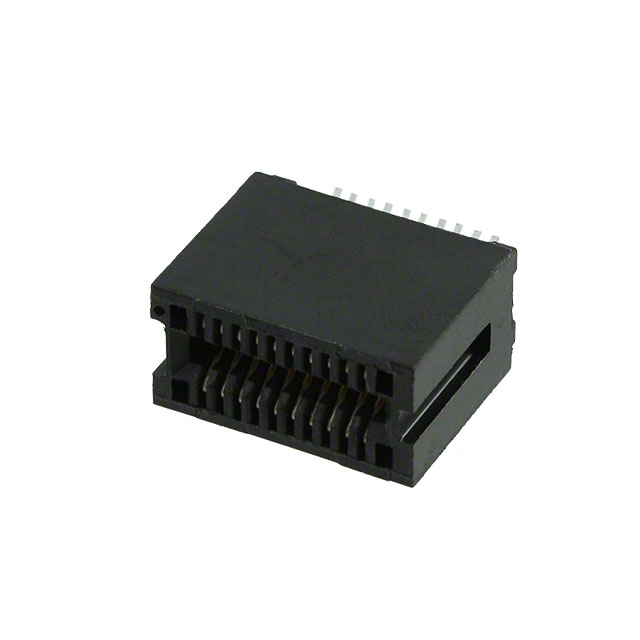

RBB10DHRN

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 20POS 0.050

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RBB10DHRN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder

RBB10 Series

Part	Pitch [x]	Pitch [x]	Material - Insulation	Card Type	Contact Type	Number of Positions/Bay/Row [custom]	Contact Material	Gender	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Color	Mounting Type	Features	Card Thickness	Card Thickness	Flange Feature	Flange Feature	Flange Feature	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Sullins Connector Solutions RBB10DYRD	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Cantilever	10	Phosphor Bronze	Female	Gold	Solder	125 °C	-65 ░C	Dual	Black	Board Edge Straddle Mount	Card Extender	0.062 in	1.57 mm	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DYHT	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Cantilever	10	Phosphor Bronze	Female	Gold	Solder Staggered	125 °C	-65 ░C	Dual	Black	Through Hole		0.062 in	1.57 mm	4-40 Flush Mount Threaded Insert Top Opening			20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DHBD	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Hairpin Bellows	10	Phosphor Bronze	Female	Gold	Solder Staggered	125 °C	-65 ░C	Dual	Black	Through Hole Right Angle		0.062 in	1.57 mm	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DYRQ	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Cantilever	10	Phosphor Bronze	Female	Gold	Solder	125 °C	-65 ░C	Dual	Black	Board Edge Straddle Mount	Card Extender	0.062 in	1.57 mm	Straddle Mount Opening Unthreaded	0.078 in	1.98 mm	20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DHFN	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Hairpin Bellows	10	Phosphor Bronze	Female	Gold	Solder	125 °C	-65 ░C	Dual	Black	Surface Mount		0.062 in	1.57 mm				20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DYHR	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Cantilever	10	Phosphor Bronze	Female	Gold	Solder Staggered	125 °C	-65 ░C	Dual	Black	Through Hole		0.062 in	1.57 mm				20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DHLD	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Hairpin Bellows	10	Phosphor Bronze	Female	Gold	Solder	125 °C	-65 ░C	Dual	Black	Through Hole		0.062 in	1.57 mm	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DHRN	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Hairpin Bellows	10	Phosphor Bronze	Female	Gold	Solder	125 °C	-65 ░C	Dual	Black	Board Edge Straddle Mount	Card Extender	0.062 in	1.57 mm				20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DHAT	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Hairpin Bellows	10	Phosphor Bronze	Female	Gold	Solder Staggered	125 °C	-65 ░C	Dual	Black	Through Hole Right Angle		0.062 in	1.57 mm	4-40 Flush Mount Threaded Insert Top Opening			20	2	10 Áin	0.25 Ám
Sullins Connector Solutions RBB10DYRN-S1355	0.05 in	1.27 mm	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Cantilever	10	Phosphor Bronze	Female	Gold	Solder	125 °C	-65 ░C	Dual	Black	Board Edge Straddle Mount	Card Extender	0.062 in	1.57 mm				20	2	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.61
		10	$ 6.88
		30	$ 6.50
		50	$ 6.34
		100	$ 6.03
		250	$ 5.39
		500	$ 5.07
		1000	$ 4.44

Description

General part information

RBB10 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
