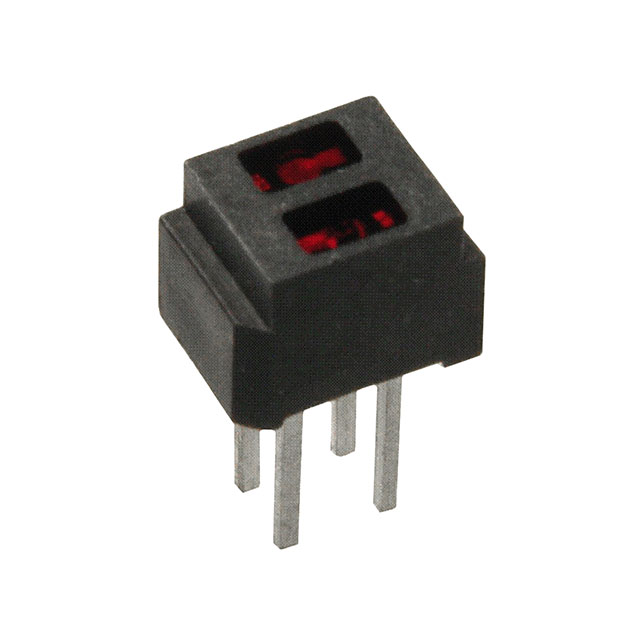

OPB606C

Active

TT Electronics/Optek Technology

SENSR OPTO TRANS 1.27MM REFL PCB

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSR OPTO TRANS 1.27MM REFL PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OPB606C

Current - Collector (Ic) (Max) [Max]	25 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	PCB Mount
Sensing Distance	0.05 in
Sensing Distance	1.27 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - DC Forward (If) (Max)	Sensing Distance	Sensing Distance	Mounting Type
TT Electronics/Optek Technology OPB606C	Reflective	30 V	25 mA	85 °C	-40 °C	PCB Mount	50 mA	0.05 in	1.27 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.050" (1.27mm) PCB Mount
