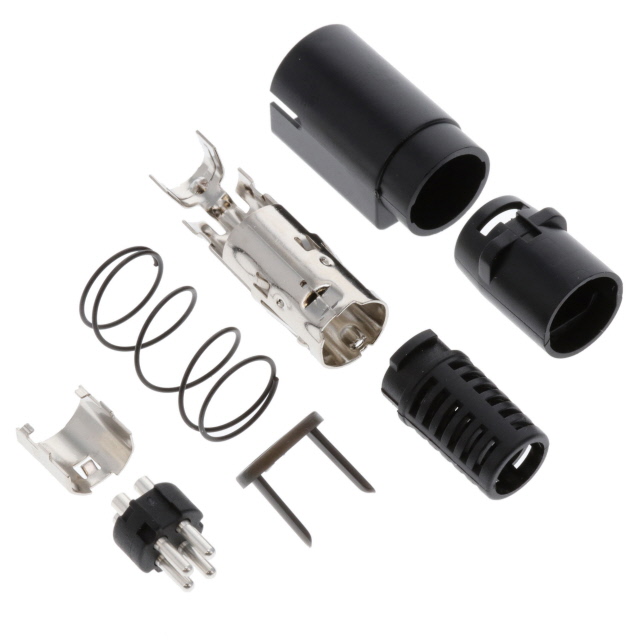

KPPX-4P-SR7DI

Active

Kycon, Inc.

CONN PLUG MALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN PLUG MALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	KPPX-4P-SR7DI

Applications	Digital, Power
Backshell Material, Plating	Polyacrylonitrile Butadiene Styrene (ABS)
Cable Opening [custom]	6.35 mm
Cable Opening [custom]	0.25 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Snap-In
Features	Strain Relief, Backshell
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB, UL94 V-2
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyacrylonitrile Butadiene Styrene (ABS)
Shielding	Unshielded
Voltage Rating	48 VDC

DC Power Connectors 4P POWER PLUG SNAP AND LOCK

Part	Backshell Material, Plating	Shell Material	Contact Material	Primary Material	Connector Type	Material Flammability Rating	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Features	Applications	Orientation	Current Rating (Amps)	Voltage Rating	Color	Number of Positions	Contact Finish - Mating	Shielding	Mounting Type
Kycon, Inc. KPPX-4P-SR7DI	Polyacrylonitrile Butadiene Styrene (ABS)	Polyacrylonitrile Butadiene Styrene (ABS)	Brass	Plastic	Male Pins Plug	UL94 HB UL94 V-2	Snap-In	6.35 mm	0.25 in	Nylon Polyamide (PA)	Backshell Strain Relief	Digital Power	Keyed	7.5 A	48 VDC	Black	4	Silver	Unshielded	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC Power Connectors 4P POWER PLUG SNAP AND LOCK
