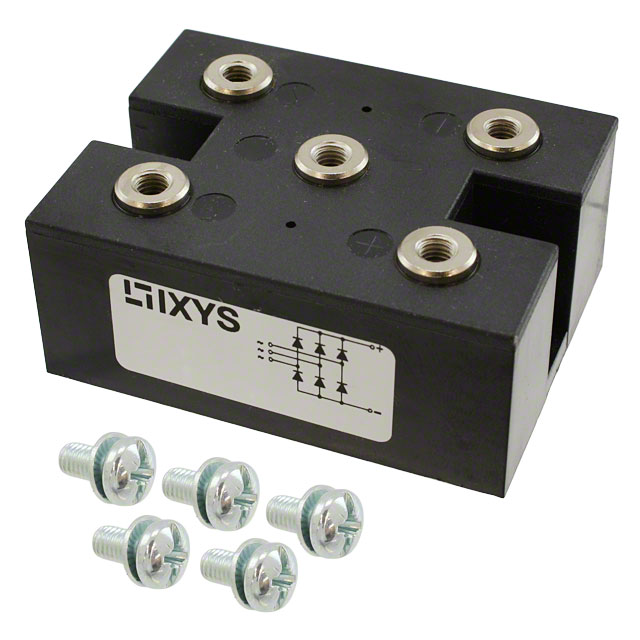

VUO105-16NO7

Obsolete

IXYS

BRIDGE RECT 3P 1.6KV 140A PWS-C

Search across all available documentation for this part.

Obsolete

IXYS

BRIDGE RECT 3P 1.6KV 140A PWS-C

Technical Specifications

Parameters and characteristics for this part

Specification	VUO105-16NO7

Current - Average Rectified (Io)	140 A
Current - Reverse Leakage @ Vr	100 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	PWS-C
Supplier Device Package	PWS-C
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.09 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Voltage - Peak Reverse (Max)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Average Rectified (Io)	Technology	Diode Type	Voltage - Peak Reverse (Max) [Max]
IXYS VUO105-16NO7	1.6 kV	PWS-C	1.09 V	Chassis Mount	100 µA	150 °C	-40 °C	PWS-C	140 A	Standard	Three Phase
IXYS VUO105-18NO7		PWS-C	1.09 V	Chassis Mount	100 µA	150 °C	-40 °C	PWS-C	140 A	Standard	Three Phase	1.8 kV
IXYS VUO105-14NO7		PWS-C	1.09 V	Chassis Mount	100 µA	150 °C	-40 °C	PWS-C	140 A	Standard	Three Phase	1.4 kV
IXYS VUO105-12NO7		PWS-C	1.09 V	Chassis Mount	100 µA	150 °C	-40 °C	PWS-C	140 A	Standard	Three Phase	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount PWS-C
