BD1206GUL-E2

Obsolete

Rohm Semiconductor

IC LED DRIVER RGLTR DIM VCSP50L2

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

IC LED DRIVER RGLTR DIM VCSP50L2

Technical Specifications

Parameters and characteristics for this part

Specification	BD1206GUL-E2

Current - Output / Channel [custom]	20 mA
Dimming	PWM
Frequency	850 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C

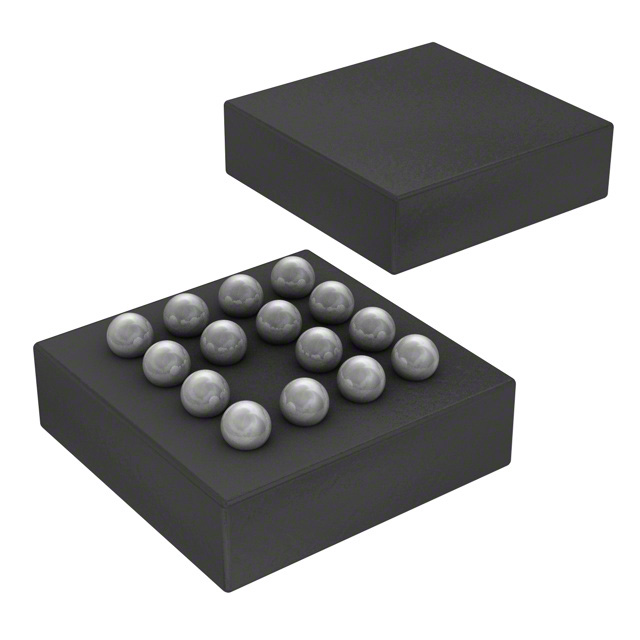

Package / Case	15-UFBGA, CSPBGA
Supplier Device Package	15-VCSP50L2 (2.1x2.1)
Topology	Switched Capacitor (Charge Pump)
Type	DC DC Regulator
Voltage - Supply (Max)	5.5 V

Part	Internal Switch(s)	Dimming	Current - Output / Channel [custom]	Mounting Type	Supplier Device Package	Package / Case	Voltage - Supply (Max)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Number of Outputs	Topology
Rohm Semiconductor BD1206GUL-E2		PWM	20 mA	Surface Mount	15-VCSP50L2 (2.1x2.1)	15-UFBGA CSPBGA	5.5 V	DC DC Regulator	-30 °C	85 °C	850 kHz	6	Switched Capacitor (Charge Pump)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 20mA 15-VCSP50L2 (2.1x2.1)
