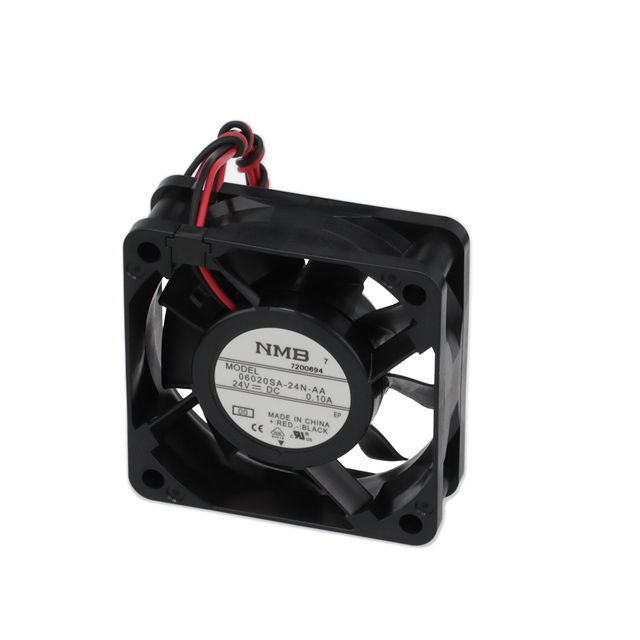

06020SA-24N-AA-00

Active

NMB TECHNOLOGIES

AXIAL FAN, 60MM, 24VDC, 20.5CFM, 30.5DB ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

06020SA-24N-AA-00

Active

NMB TECHNOLOGIES

AXIAL FAN, 60MM, 24VDC, 20.5CFM, 30.5DB ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	06020SA-24N-AA-00

Air Flow	20.5 CFM
Air Flow	0.574 m³/min
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	30.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.68 W
RPM	4400 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	49.8 Pa
Static Pressure	0.2 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	9 V
Width [y]	20 mm

06020SA Series

Part	Voltage - Rated	RPM	Power (Watts)	Material - Frame	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Current Rating (Amps)	Material - Blade	Bearing Type	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Termination	Weight	Weight	Lifetime @ Temp.	Air Flow	Air Flow	Features
NMB TECHNOLOGIES 06020SA-12J-AA-00	12 VDC	2800 RPM	0.58 W	Plastic	Tubeaxial	13.8 VDC	6 VDC	60 mm	60 mm	22.4 Pa	0.09 in H2O	50 mA	Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C	21.5 dB(A)	2 Wire Leads	55.79 g	0.123 lb	40000 Hrs
NMB TECHNOLOGIES 06020SA-12N-AL-00	12 VDC	4400 RPM	1.08 W	Plastic	Tubeaxial	13.8 VDC	6 VDC	60 mm	60 mm	52.3 Pa	0.21 in H2O	0.09 A	Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C	30.5 dB	3 Wire Leads	55.79 g	0.123 lb	40000 Hrs	20.5 CFM	0.574 m³/min	Locked Rotor Sensor
NMB TECHNOLOGIES 06020SA-24T-AL-00	24 VDC			Plastic	Tubeaxial			60 mm	60 mm				Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C		3 Wire Leads						Auto Restart Locked Rotor Sensor
NMB TECHNOLOGIES 06020SA-12T-ET-00	12 VDC			Plastic	Tubeaxial			60 mm	60 mm				Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C		3 Wire Leads			40000 Hrs			Auto Restart Speed Sensor (Tach)
NMB TECHNOLOGIES 06020SA-12L-EA-00	12 VDC	3600 RPM	720 mW	Plastic	Tubeaxial	13.8 VDC	6 VDC	60 mm	60 mm	34.9 Pa	0.14 in H2O	60 mA	Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C	26 dB	2 Wire Leads			40000 Hrs	16.6 CFM	0.465 mł/min	Auto Restart
NMB TECHNOLOGIES 06020SA-12T-AT-00	12 VDC			Plastic	Tubeaxial			60 mm	60 mm				Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C		3 Wire Leads			40000 Hrs			Auto Restart Speed Sensor (Tach)
NMB TECHNOLOGIES 06020SA-24T-AA-00	24 VDC			Plastic	Tubeaxial			60 mm	60 mm				Plastic	Ball	20 mm						2 Wire Leads						Auto Restart
NMB TECHNOLOGIES 06020SA-12M-EA-00	12 VDC	4000 RPM		Plastic	Tubeaxial	13.8 VDC	6 VDC	60 mm	60 mm	42.3 Pa	0.17 in H2O		Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C		2 Wire Leads	55.79 g	0.123 lb	40000 Hrs	18.4 CFM	0.515 mł/min
NMB TECHNOLOGIES 06020SA-12J-AL-00	12 VDC	2800 RPM	0.58 W	Plastic	Tubeaxial	13.8 VDC	6 VDC	60 mm	60 mm	22.4 Pa	0.09 in H2O	50 mA	Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C	21.5 dB(A)	3 Wire Leads	55.79 g	0.123 lb	40000 Hrs			Locked Rotor Sensor
NMB TECHNOLOGIES 06020SA-24N-AA-00	24 VDC	4400 RPM	1.68 W	Plastic	Tubeaxial	27.6 VDC	9 V	60 mm	60 mm	49.8 Pa	0.2 in H2O	70 mA	Plastic	Ball	20 mm	70 °C	70 °C	-10 °C	-10 °C	30.5 dB	2 Wire Leads			40000 Hrs	20.5 CFM	0.574 m³/min	Auto Restart

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.49
		10	$ 10.25
		25	$ 9.79
		50	$ 9.46
		120	$ 9.05
		360	$ 8.57
		600	$ 8.35
Newark	Each	1	$ 15.27
		5	$ 14.87
		10	$ 14.48
		25	$ 14.15
		50	$ 13.90

Description

General part information

06020SA Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 20.5 CFM (0.574m³/min) 2 Wire Leads
