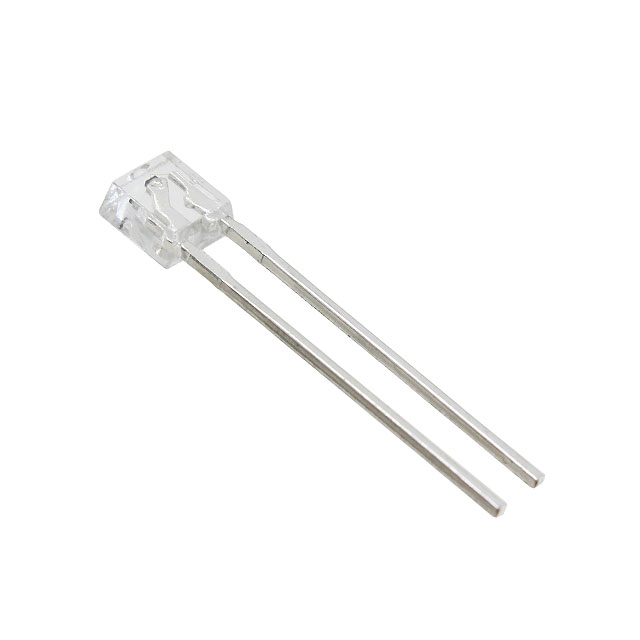

OP509B

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP VIEW RAD

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	OP509B

Current - Collector (Ic) (Max) [Max]	10.6 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Power - Max [Max]	100 mW
Viewing Angle	50 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	890 nm

Part	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Viewing Angle	Package / Case	Current - Dark (Id) (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Wavelength
TT Electronics/Optek Technology OP509B	100 mW	100 °C	-40 °C	Top View	30 V	50 °	Radial	100 nA	Through Hole	10.6 mA	890 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.92

General part information

Phototransistors 890nm Top View Radial

Technical documentation and resources

No documents available
