TLS850B0TB33BOARDTOBO1

Active

Infineon Technologies

DEMO BRD, 0.5A, LOW DROPOUT LINEAR REG ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOperating Instructions EN

TLS850B0TB33BOARDTOBO1

Active

Infineon Technologies

DEMO BRD, 0.5A, LOW DROPOUT LINEAR REG ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsOperating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLS850B0TB33BOARDTOBO1

Board Type	Fully Populated
Channels per IC	1 - Single
Current - Output	500 mA
Regulator Type	Positive Fixed
Supplied Contents	Board(s)
Utilized IC / Part	TLS850B0TBV33
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3 V
Voltage - Output	3.3 V

TLS850 Series

Part	Regulator Type	Board Type	Channels per IC	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Utilized IC / Part	Current - Output	Supplied Contents	Grade	Voltage - Output (Min/Fixed)	Protection Features	Current - Supply (Max) [Max]	Package / Case	Mounting Type	Output Type	Output Configuration	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Qualification	Number of Regulators	Operating Temperature [Max]	Operating Temperature [Min]	PSRR	Control Features	Supplier Device Package
Infineon Technologies TLS850B0TE33BOARDTOBO1	Positive Fixed	Fully Populated	1 - Single	40 V	3 V	3.3 V	TLS850B0TEV33	500 mA	Board(s)
Infineon Technologies TLS850F2TAV50ATMA1								500 mA		Automotive	5 V	Over Current Over Temperature	82 µA	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Surface Mount	1.81 mOhm	Positive	80 µA	0.175 V	AEC-Q100	1	150 °C	-40 °C	59 dB	Enable Power Fail	PG-TO263-7-1
Infineon Technologies TLS850F3TUV50ATMA1
Infineon Technologies TLS850B0TB33BOARDTOBO1	Positive Fixed	Fully Populated	1 - Single	40 V	3 V	3.3 V	TLS850B0TBV33	500 mA	Board(s)
Infineon Technologies TLS850B0TB50BOARDTOBO1	Positive Fixed	Fully Populated	1 - Single	40 V	3 V	5 V	TLS850B0TBV50	500 mA	Board(s)
Infineon Technologies TLS850B0TEV50ATMA1								500 mA		Automotive	5 V	Over Current Over Temperature	33 µA	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	Surface Mount	1.81 mOhm	Positive		0.5 V	AEC-Q100	1	150 °C	-40 °C	60 dB	Enable	PG-TO252-5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.60
Newark	Each	1	$ 29.17

Description

General part information

TLS850 Series

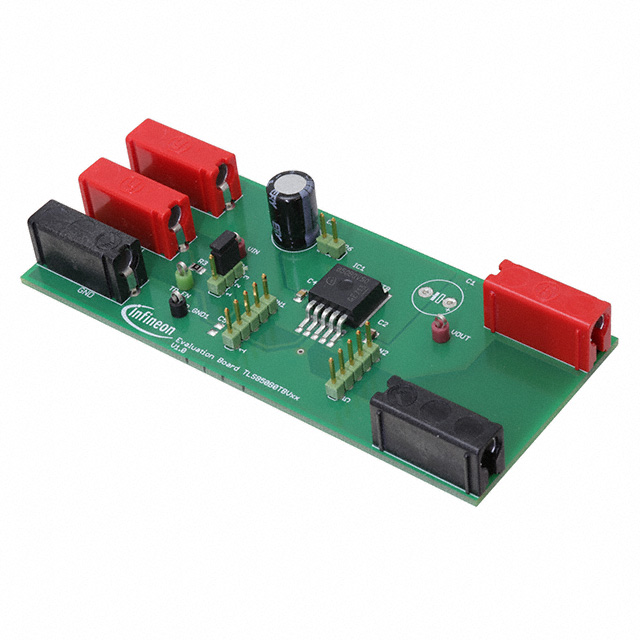

The TLS850B0TB33 demoboard enables evaluation of Infineon’s latest high performance automotive LDOs with ultra-low quiescent current. TheTLS850B0TBV33has been designed for all ECUs connected to the battery within the automotive application space that need to be switched ON and OFF via an enable feature. The ultra-low quiescent current of typically 20 µA helps Tier1s meet OEM imposed current consumption restrictions on the ECU level. The demoboard allows for an easy plug and play solution to evaluate the TLS850B0TBV33 with all necessary external components already mounted on the board. The TLS850B0TBV33 has a fixed 3.3 V output and the board is pre-configured with external components to provide a stable 3.3 V at the output of the linear regulator.
