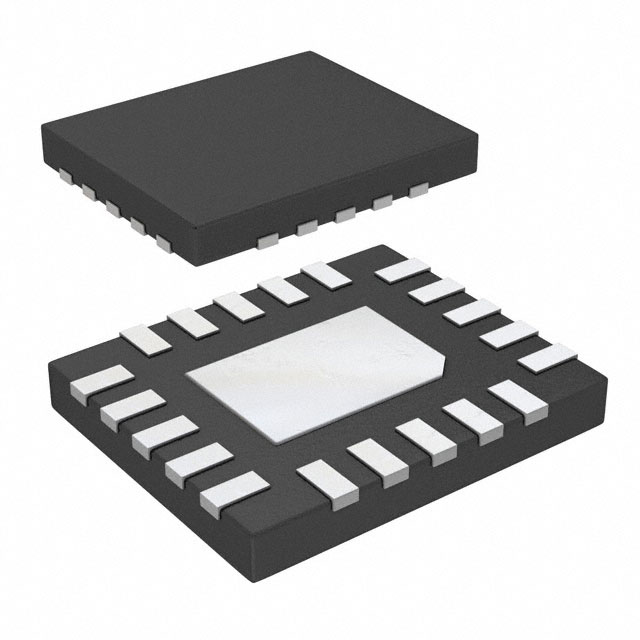

RT2660LGQV
ActiveRichtek USA Inc.
IC REG BUCK ADJ 6A 20VQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT2660LGQV
ActiveRichtek USA Inc.
IC REG BUCK ADJ 6A 20VQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT2660LGQV |
|---|---|
| Current - Output | 6 A |
| Frequency - Switching | 600 kHz, 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 1 V |
| Voltage - Output (Max) [Max] | 2 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.44 | |
| 10 | $ 2.94 | |||
| 25 | $ 2.55 | |||
| 100 | $ 2.12 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.78 | |||
Description
General part information
RT2660 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 20-VFQFN Exposed Pad
