SSI-LXR9126SID110V
ActiveLumex Opto/Components Inc.
LED RED PNL MNT 6"LDS W/CONN
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXR9126SID110V
ActiveLumex Opto/Components Inc.
LED RED PNL MNT 6"LDS W/CONN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXR9126SID110V |
|---|---|
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 100 mcd |
| Panel Cutout Dimensions | 8.13 mm |
| Panel Cutout Dimensions | 0.32 in |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 120 V |
| Wavelength - Peak | 636 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.84 | |
| 10 | $ 4.96 | |||
| 100 | $ 4.10 | |||
| 500 | $ 3.59 | |||
| 1000 | $ 3.39 | |||
| 2000 | $ 3.31 | |||
Description
General part information
SSI-LXR9126 Series

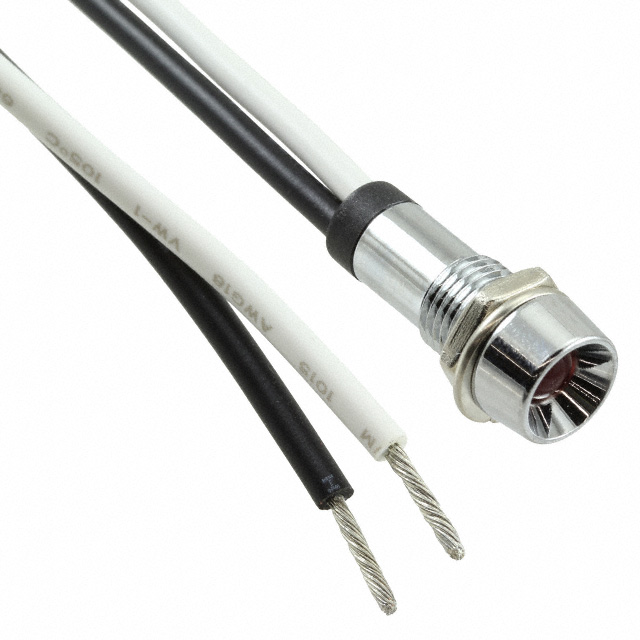

LED Panel Indicator Red Diffused 60° 120V Wire Leads - 6" (152.40mm)
Documents
Technical documentation and resources
No documents available
