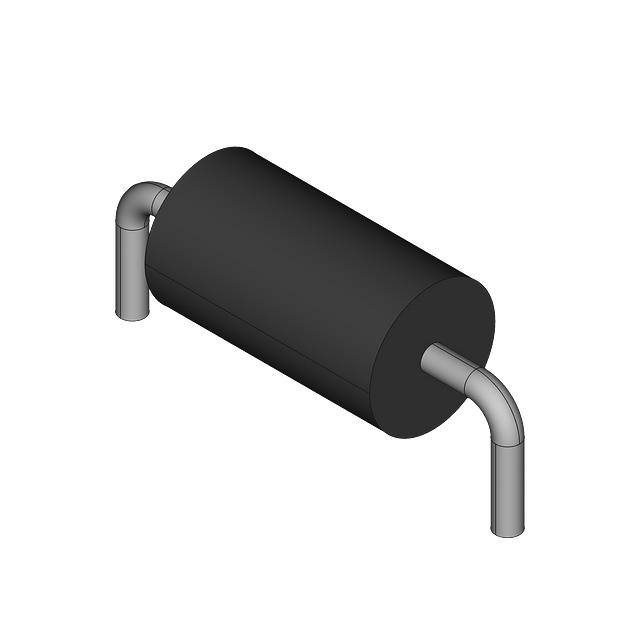

1.5KE20ARL4G

Active

ON Semiconductor

TVS DIODE 17.1VWM 27.7VC AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

1.5KE20ARL4G

Active

ON Semiconductor

TVS DIODE 17.1VWM 27.7VC AXIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.5KE20ARL4G

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	54 A
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	DO-201AD, Axial
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	19 V
Voltage - Clamping (Max) @ Ipp [Max]	27.7 V
Voltage - Reverse Standoff (Typ)	17.1 V

1.5KE Series

Part	Applications	Mounting Type	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Power - Peak Pulse	Power - Peak Pulse	Type	Package / Case	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels [custom]
ON Semiconductor 1.5KE20ARL4G	General Purpose	Through Hole	17.1 V	19 V	27.7 V	1	54 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial
ON Semiconductor 1.5KE16A	General Purpose	Through Hole	13.6 V	15.2 V	22.5 V	1	67 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial
ON Semiconductor 1.5KE20A	General Purpose	Through Hole	17.1 V	19 V	27.7 V	1	54 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial
ON Semiconductor 1.5KE8.2ARL4	General Purpose	Through Hole	7.02 V	7.79 V	12.1 V	1	124 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial
ON Semiconductor 1.5KE6.8A	General Purpose	Through Hole	5.8 V	6.45 V	10.5 V	1	143 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial
ON Semiconductor 1.5KE82A	General Purpose	Through Hole	70.1 V	77.9 V	113 V	1	13.9 A	175 ░C	-50 °C	DO-201	1.5 kW	1500 W	Zener	Axial DO-201AA DO-27
ON Semiconductor 1.5KE43ARL4	General Purpose	Through Hole	36.8 V	40.9 V		1	25.3 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial	59.3 V
ON Semiconductor 1.5KE15CA	General Purpose	Through Hole	12.8 V	14.3 V			74 A	175 ░C	-50 °C	DO-201	1.5 kW	1500 W	Zener	Axial DO-201AA DO-27	21.2 V	1
ON Semiconductor 1.5KE8.2ARL4G	General Purpose	Through Hole	7.02 V	7.79 V	12.1 V	1	124 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial
ON Semiconductor 1.5KE75AG	General Purpose	Through Hole	64.1 V	71.3 V	103 V	1	14.6 A	175 ░C	-65 °C	Axial	1.5 kW	1500 W	Zener	DO-201AD Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1040	$ 0.29

Description

General part information

1.5KE Series

27.7V Clamp 54A Ipp Tvs Diode Through Hole Axial

Documents

Technical documentation and resources

No documents available
