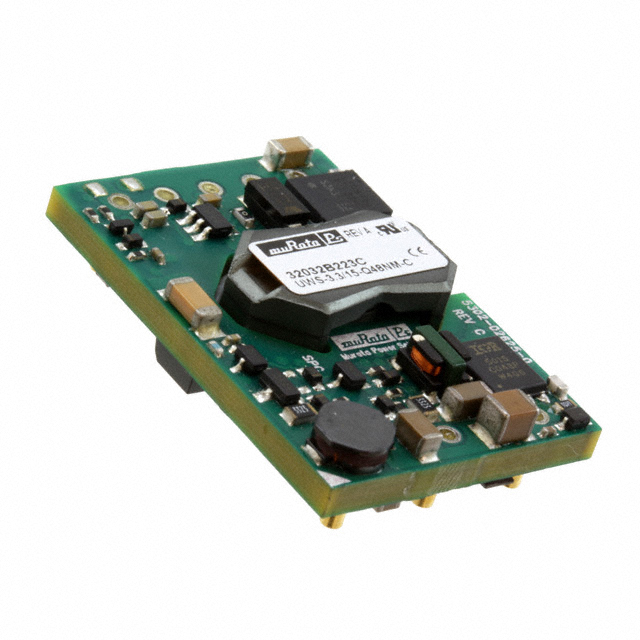

UWS-3.3/15-Q48NM-C

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 3.3V, 15A

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 3.3V, 15A

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Mounting Type	Type	Features	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Voltage - Input (Min) [Min]	Control Features	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Supplier Device Package
Murata Power Solutions Inc. UWS-3.3/15-Q48NM-C	89 %	Surface Mount	Isolated Module	Remote On/Off UVLO	50 W	ITE (Commercial)	0.91 in	23.1 mm	0.36 in	9.1 mm	1.31 in	33.3 mm	2250 VDC	18 V	Active Low Enable	15 A	1	1/16 Brick 8-SMD Module	3.3 V	85 °C	-40 °C	75 V
Murata Power Solutions Inc. UWS-3.3/15-Q12P-C		Through Hole	Isolated Module	Adjustable Output Remote On/Off Remote Sense	50 W	ITE (Commercial)	0.9 "	22.9 mm	0.36 in	9.1 mm	1.3 "	33 mm	2250 VDC	9 V	Active High Enable	15 A	1	Sixteenth Brick	3.3 V	85 °C	-40 °C	36 V	Sixteenth Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 37.31
	Digi-Reel®	1	$ 37.31
	Tape & Reel (TR)	200	$ 32.79
Newark	Each	1	$ 50.40

General part information

Isolated Module DC DC Converter 1 Output 3.3V 15A 18V - 75V Input

Technical documentation and resources
