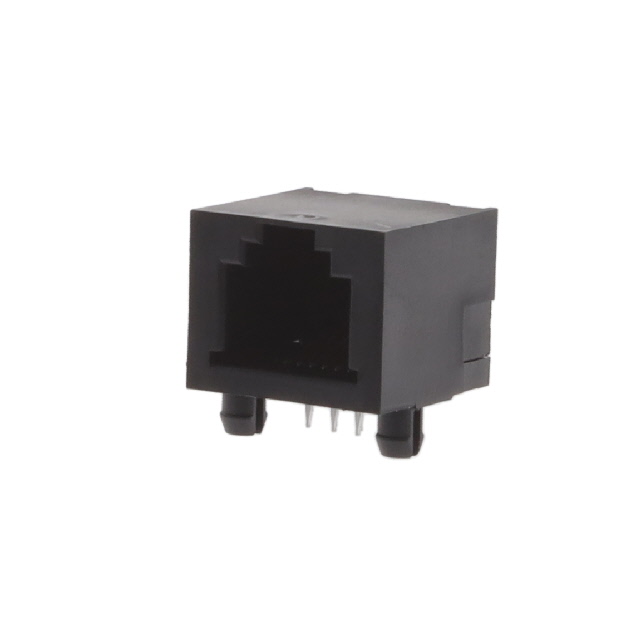

MTJ-66ARX1

Active

Adam Tech

MODULAR JACK 6P6C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Comms, AudioVideo, Data, Other Signaling-circuit Acc.

MTJ-66ARX1

Active

Adam Tech

MODULAR JACK 6P6C

Deep-Dive with AI

DocumentsDatasheet Comms, AudioVideo, Data, Other Signaling-circuit Acc.

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTJ-66ARX1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

MTJ-66 Series

Part	Shielding	Contact Finish Thickness	Orientation	LED Color	Number of Rows	Connector Type	Termination	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Housing Material	Mounting Type	Contact Finish	Number of Ports	Contact Material	Features	Orientation
Adam Tech MTJ-66GX1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Down	Polybutylene Terephthalate (PBT)	Through Hole	Gold	1	Phosphor Bronze
Adam Tech MTJ-66ARX1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	70 °C	0 °C	Up	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Gold	1	Phosphor Bronze
Adam Tech MTJ-66WAX1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	125 °C	-40 °C	Down	Thermoplastic	Surface Mount	Gold	1	Phosphor Bronze	Solder Retention
Adam Tech MTJ-665X1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Down	Polybutylene Terephthalate (PBT)	Through Hole	Gold	1	Phosphor Bronze
Adam Tech MTJ-663X1	Unshielded	Flash		Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	User Selectable	Polybutylene Terephthalate (PBT)	Through Hole	Gold	1	Phosphor Bronze		Vertical
Adam Tech MTJ-66WBX1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	125 °C	-40 °C	Down	Polyamide (PA) Nylon Glass Filled	Surface Mount	Gold	1	Phosphor Bronze	Solder Retention
Adam Tech MTJ-661X1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Down	Polybutylene Terephthalate (PBT)	Through Hole	Gold	1	Phosphor Bronze
Adam Tech MTJ-66YX1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	70 °C	-40 °C	Down	Thermoplastic	Surface Mount	Gold	1	Phosphor Bronze
Adam Tech MTJ-660X1	Unshielded	Flash	90 °	Does Not Contain LED	1	Jack	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Down	Polybutylene Terephthalate (PBT)	Through Hole	Gold	1	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	3000	$ 0.43

Description

General part information

MTJ-66 Series

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
