ZMW00AP00PCAA

Active

Littelfuse/Commercial Vehicle Products

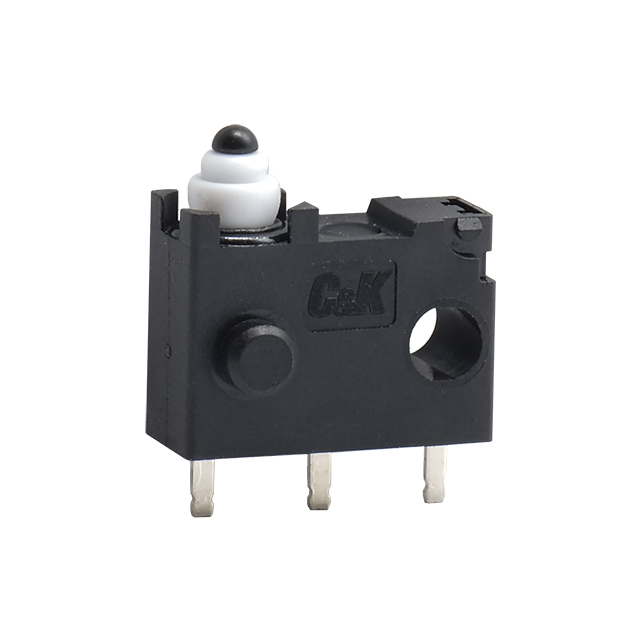

MICROSWITCH SNAP ACTION; 0.1A/30VDC; WITHOUT LEVER; SPDT; POS: 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet snap +1

ZMW00AP00PCAA

Active

Littelfuse/Commercial Vehicle Products

MICROSWITCH SNAP ACTION; 0.1A/30VDC; WITHOUT LEVER; SPDT; POS: 2

Deep-Dive with AI

DocumentsDatasheet snap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMW00AP00PCAA

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Electrical Life	300000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	150 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.087 in
Overtravel	2.2 mm
Pretravel	0.03 in
Pretravel	0.8 mm
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - DC	30 V

Zmw0 Series Series

Mini Size Snap-acting Switches

Part	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Termination Style	Mechanical Life	Ingress Protection	Operating Force	Overtravel	Overtravel	Actuator Type	Mounting Type	Circuit	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life
Littelfuse/Commercial Vehicle Products ZMW00AT10KYDC	Off-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.098 in	2.5 mm	Lever Straight	Chassis Mount	SPST-NO	0.09 in	2.3 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AT10KWDC	On-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.098 in	2.5 mm	Lever Straight	Chassis Mount	SPST-NC	0.09 in	2.3 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AT10PCDC	On-Mom	100 mA	30 V	PC Pin	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.098 in	2.5 mm	Lever Straight	Through Hole	SPDT	0.09 in	2.3 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AP00JWAA	On-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.087 in	2.2 mm	Round (Pin Plunger)	Chassis Mount	SPST-NC	0.03 in	0.8 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AP00KYAA	Off-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.087 in	2.2 mm	Round (Pin Plunger)	Chassis Mount	SPST-NO	0.03 in	0.8 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AP00PCDC	On-Mom	100 mA	30 V	PC Pin	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.087 in	2.2 mm	Round (Pin Plunger)	Through Hole	SPDT	0.03 in	0.8 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AP00PCAA	On-Mom	100 mA	30 V	PC Pin	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.087 in	2.2 mm	Round (Pin Plunger)	Through Hole	SPDT	0.03 in	0.8 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AT10JYAA	Off-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.098 in	2.5 mm	Lever Straight	Chassis Mount	SPST-NO	0.09 in	2.3 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMW00AP00KYDC	Off-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.087 in	2.2 mm	Round (Pin Plunger)	Chassis Mount	SPST-NO	0.03 in	0.8 mm	85 °C	-40 °C	300000 Cycles
Littelfuse/Commercial Vehicle Products ZMWG00T10JYAA	Off-Mom	100 mA	30 V	Wire Leads	500000 Cycles	IP67 - Dust Tight Waterproof	150 gf	0.098 in	2.5 mm	Lever Straight	Chassis Mount	SPST-NO	0.09 in	2.3 mm	85 °C	-40 °C	300000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.75
		10	$ 2.43
		25	$ 2.27
		40	$ 2.16
		80	$ 1.90

Description

General part information

Zmw0 Series Series

C&K’s ZMW series mini size snap-acting switches are often found used in automotive. Featuring a compact size (which is ideal when space is limited) and a reliable snap-acting mechanism, the ZMW series give applications with adequate long stroke requirement, ensuing they stand up to repeated use.
