C0786A.41.10
ActivePrysmian Group

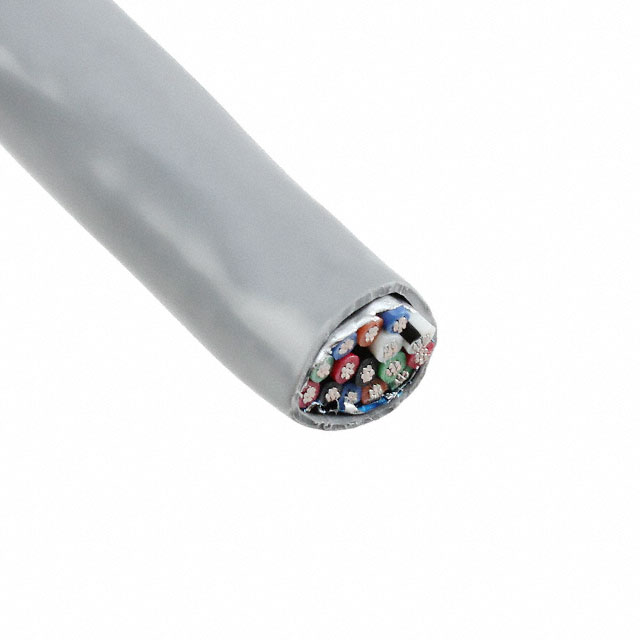

CABLE 15COND 20AWG GRAY SHLD 50'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsC0786A Series
C0786A.41.10
ActivePrysmian Group
CABLE 15COND 20AWG GRAY SHLD 50'
Deep-Dive with AI
DocumentsC0786A Series
Technical Specifications
Parameters and characteristics for this part
| Specification | C0786A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 9.98 mm |
| Jacket (Insulation) Diameter [diameter] | 0.393 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 50 ft |
| Number of Conductors | 15 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 221.99 | |
| 5 | $ 181.63 | |||
| 10 | $ 141.26 | |||
| Spool | 1 | $ 2778.11 | ||
| 3 | $ 2570.12 | |||
Description
General part information
C0786 Series
15 Conductor Multi-Conductor Cable Gray 20 AWG Foil 50.00' (15.24m)
