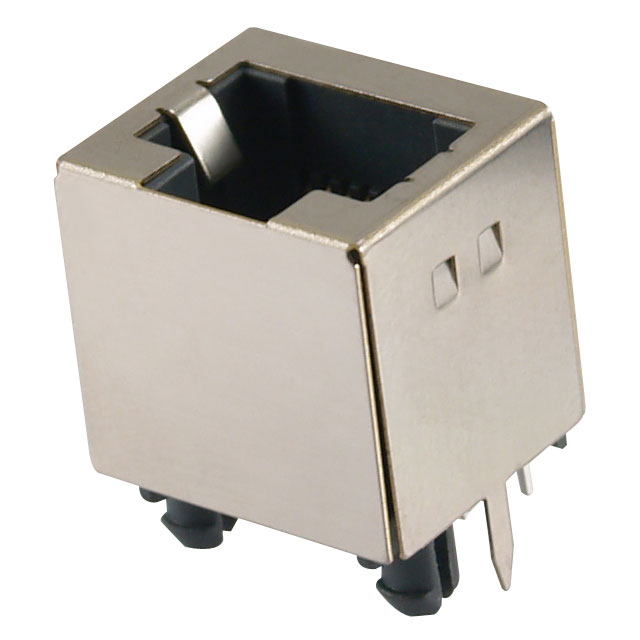

GDTX-S-88-50

Active

Kycon, Inc.

CONN MOD JACK 8P8C VERT SHLD

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN MOD JACK 8P8C VERT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	GDTX-S-88-50

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Ratings	Cat5
Shielding	Shielded, EMI Finger
Tab Direction	User Selectable
Termination	Solder

Part	Shielding	Number of Positions/Contacts	Tab Direction	LED Color	Connector Type	Contact Material	Orientation	Mounting Type	Housing Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Number of Ports	Ratings
Kycon, Inc. GDTX-S-88-50	Shielded EMI Finger	8p8c (RJ45 Ethernet)	User Selectable	Does Not Contain LED	Jack	Phosphor Bronze	Vertical	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	1	50 µin	1.27 µm	85 °C	-40 °C	Gold	Solder	1	Cat5
