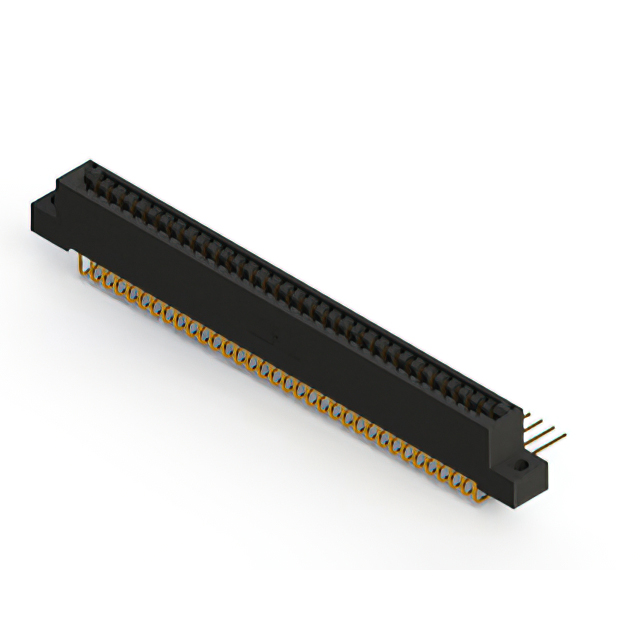

896-068-559-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 68POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-068-559-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 68POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-068-559-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-068 Series
| Part | Number of Rows | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Card Type | Number of Positions/Bay/Row [custom] | Material - Insulation | Gender | Termination | Contact Material | Pitch [x] | Pitch [x] | Read Out | Contact Type | Termination Rows | Color | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | |||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | |||||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | Card Extender | ||||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | |||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | |||||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | |||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | |||||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole Right Angle | 68 | Non Specified - Dual Edge | 34 | Polyphenylene Sulfide (PPS) | Female | Solder | Copper Alloy | 0.125 in | 3.18 mm | Dual | Cantilever | 2 | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 73.63 | |
Description
General part information
896-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
