SN240C

Active

Comet America, LP

PT1000TR125/C, TEMP PROBE 2 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR125/C, TEMP PROBE 2 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN240C

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5 mm
Element Type	Pt1000
Length - Lead Wire [x]	6.562 ft
Length - Lead Wire [x]	2 m
Length - Protective Tube	50 mm
Temperature Range [Max]	150 °C
Temperature Range [Min]	-190 °C
Terminal Type	Exposed Lead Wires

Part	Terminal Type	Conductor Type	Length - Lead Wire [x]	Length - Lead Wire [x]	Temperature Range [Min]	Temperature Range [Max]	Element Type	Length - Protective Tube	Diameter - Protective Tube [diameter]
Comet America, LP SN240C	Exposed Lead Wires	Non-Grounded	6.562 ft	2 m	-190 °C	150 °C	Pt1000	50 mm	5 mm
Comet America, LP SN240E	Exposed Lead Wires	Non-Grounded	6.562 ft	2 m	-190 °C	150 °C	Pt1000	50 mm	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

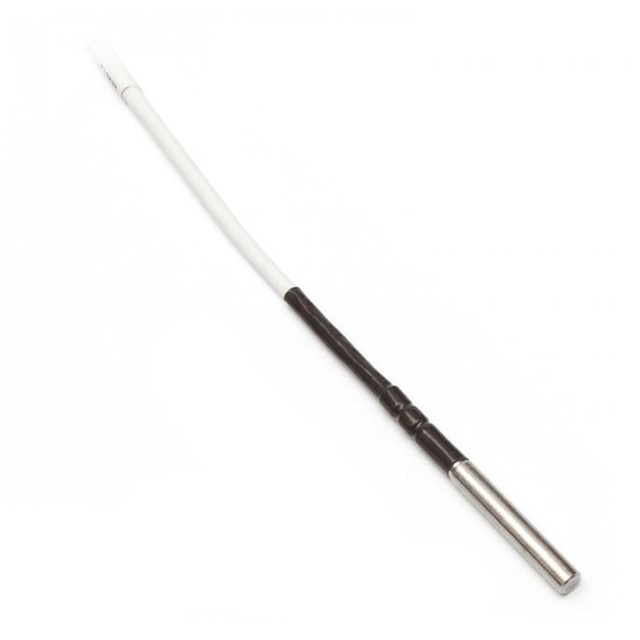

Pt1000 Temperature Sensor -190°C ~ 150°C Non-Grounded Exposed Lead Wires
