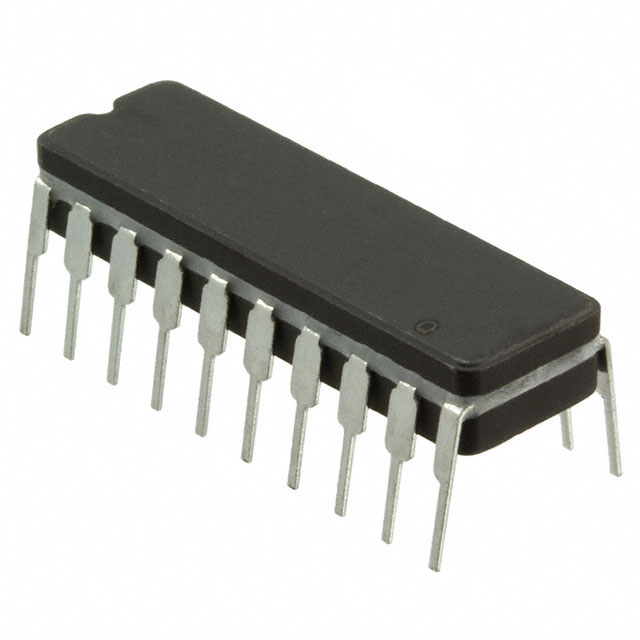

54FCT373CTDB
ObsoleteRenesas Electronics Corporation
IC D-TYPE TRANSP 8:8 20-CDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
54FCT373CTDB
ObsoleteRenesas Electronics Corporation
IC D-TYPE TRANSP 8:8 20-CDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 54FCT373CTDB |
|---|---|
| Circuit [custom] | 8 |
| Circuit [custom] | 8 |
| Delay Time - Propagation | 8 ns |
| Independent Circuits | 1 |
| Logic Type | D-Type Transparent Latch |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Tri-State |
| Package / Case | 20-CDIP |
| Supplier Device Package | 20-CDIP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
54FCT373T Series
NON-INVERTING OCTAL LATCH
| Part | Logic Type | Package / Case | Independent Circuits | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Output Type | Delay Time - Propagation | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit [custom] | Circuit [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation | D-Type Transparent Latch | 20-LCC | 1 | 4.5 V | 5.5 V | 20-LCC (8.89x8.89) | Tri-State | 9.8 ns | Surface Mount | -55 °C | 125 °C | 8 | 8 |
Renesas Electronics Corporation | D-Type Transparent Latch | 20-LCC | 1 | 4.5 V | 5.5 V | 20-LCC (8.89x8.89) | Tri-State | 8 ns | Surface Mount | -55 °C | 125 °C | 8 | 8 |
Renesas Electronics Corporation | D-Type Transparent Latch | 20-CDIP | 1 | 4.5 V | 5.5 V | 20-CDIP | Tri-State | 8 ns | Through Hole | -55 °C | 125 °C | 8 | 8 |
Renesas Electronics Corporation | D-Type Transparent Latch | 20-CDIP | 1 | 4.5 V | 5.5 V | 20-CDIP | Tri-State | 9.8 ns | Through Hole | -55 °C | 125 °C | 8 | 8 |
Renesas Electronics Corporation | D-Type Transparent Latch | 20-CDIP | 1 | 4.5 V | 5.5 V | 20-CDIP | Tri-State | 15 ns | Through Hole | -55 °C | 125 °C | 8 | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
54FCT373T Series
The IDT 54FCT373T is an octal transparent latch with 3-state outputs and is intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is high. When LE is low, the data that meets the set-up time is latched. The 54FCT373T operates at -55C to +125C. (For commercial version, see 74FCT373T)
