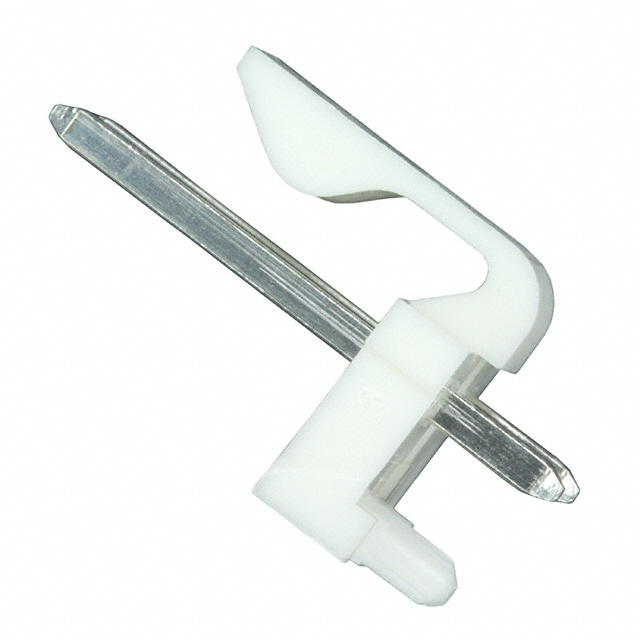

0026644020

Active

Molex

CONN HEADER VERT 2POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTin Whisker Formation Change 27/Jul/2011

0026644020

Active

Molex

CONN HEADER VERT 2POS 3.96MM

Deep-Dive with AI

DocumentsTin Whisker Formation Change 27/Jul/2011

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026644020

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.446 in
Insulation Height	11.33 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.72 "
Overall Contact Length	18.29 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002664 Series

Part	Features	Applications	Contact Shape	Insulation Material	Connector Type	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Type	Style	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Termination	Contact Material	Shrouding	Number of Positions Loaded	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Number of Positions
Molex 0026645030	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	10 mm	0.394 "	0.156 in	3.96 mm	Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole Right Angle	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm
Molex 0026644070	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	11.33 mm	0.446 in			Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm	3.56 mm	0.14 in	0.72 "	18.29 mm	7
Molex 0026645120	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	10 mm	0.394 "	0.156 in	3.96 mm	Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole Right Angle	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm					12
Molex 0026645110	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	10 mm	0.394 "	0.156 in	3.96 mm	Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole Right Angle	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm					11
Molex 0026644020	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	11.33 mm	0.446 in			Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm	3.56 mm	0.14 in	0.72 "	18.29 mm	2
Molex 0026644090	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	11.33 mm	0.446 in			Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm	3.56 mm	0.14 in	0.72 "	18.29 mm	9
Molex 0026644080	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	11.33 mm	0.446 in			Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm	3.56 mm	0.14 in	0.72 "	18.29 mm	8
Molex 0026644110	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	11.33 mm	0.446 in			Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm	3.56 mm	0.14 in	0.72 "	18.29 mm	11
Molex 0026645040	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	10 mm	0.394 "	0.156 in	3.96 mm	Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole Right Angle	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm					4
Molex 0026644060	Board Guide	Automotive General Purpose Industrial Medical Telecommunications	Square	Polyester	Header	Tin	Friction Lock	11.33 mm	0.446 in			Male Pin	Board to Board Cable	0.156 in	3.96 mm	Through Hole	60 Áin	1.52 Ám	Natural	Solder	Brass	Shrouded - 1 Wall	All	UL94 V-0	11.43 mm	0.45 in	1	60 µin	1.52 µm	3.56 mm	0.14 in	0.72 "	18.29 mm	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.33
		100	$ 0.24
		1000	$ 0.19
		5000	$ 0.17
		10000	$ 0.15

Description

General part information

002664 Series

Connector Header Through Hole 2 position 0.156" (3.96mm)
