M7WWK-1510J

Active

3M (TC)

D-SUB CABLE MFU15K/MC16G/MFU15K

Search across all available documentation for this part.

Active

3M (TC)

D-SUB CABLE MFU15K/MC16G/MFU15K

Technical Specifications

Parameters and characteristics for this part

Part	Usage	2nd Connector	Type	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Number of Positions	Shielding	Length	Length	Contact Finish	Color
3M (TC) M7WWK-0906J	Patch	Receptacle Female Sockets	DB9	0.76 Ám	30 Áin	Female Sockets Receptacle	9	Unshielded	6 ft	1.83 m	Gold
3M (TC) M7WWK-2506J	Patch	Receptacle Female Sockets	DB25	0.76 Ám	30 Áin	Female Sockets Receptacle		Unshielded	6 ft	1.83 m	Gold
3M (TC) M7WWK-3710J	Patch	Receptacle Female Sockets	DB37	0.76 Ám	30 Áin	Female Sockets Receptacle	37	Unshielded	10 ft	3.05 m	Gold
3M (TC) M7WWK-0910J	Patch	Receptacle Female Sockets	DB9	0.76 Ám	30 Áin	Female Sockets Receptacle	9	Unshielded	10 ft	3.05 m	Gold
3M (TC) M7WWK-1510J	Patch	Receptacle Female Sockets	DB15	0.76 Ám	30 Áin	Female Sockets Receptacle	15	Unshielded	10 ft	3.05 m	Gold
3M (TC) M7WWK-5006J	Patch	Receptacle Female Sockets	DB50	0.76 Ám	30 Áin	Female Sockets Receptacle	50	Unshielded	6 ft	1.83 m	Gold
3M (TC) M7WWK-3706J	Patch	Receptacle Female Sockets	DB37	0.76 Ám	30 Áin	Female Sockets Receptacle	37	Unshielded	6 ft	1.83 m	Gold
3M (TC) M7WWK-0910R	Patch	Receptacle Female Sockets	DB9	0.76 Ám	30 Áin	Female Sockets Receptacle	9	Unshielded	10 ft	3.05 m	Gold	Multiple Ribbon
3M (TC) M7WWK-2510R	Patch	Receptacle Female Sockets	DB25	0.76 Ám	30 Áin	Female Sockets Receptacle		Unshielded	10 ft	3.05 m	Gold	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

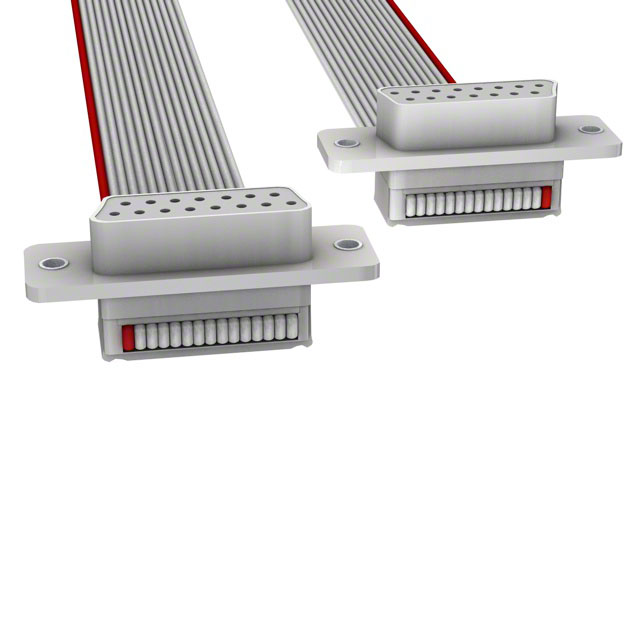

D-Sub Cable Assembly DB15 Gray, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
