1734546

Active

Phoenix Contact

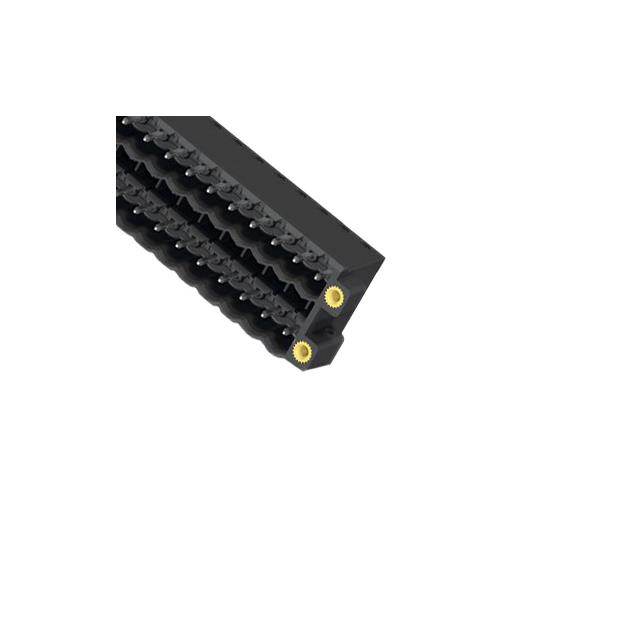

PLUGGABLE TERMINAL BLOCKS 12 POS 5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1734546

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.102 in
Contact Tail Length	2.6 mm
Current - IEC	12 A
Current - UL	10 A
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	20.09 mm
Insulation Height	0.791 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	24
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header

Part	Termination Style	Header Orientation	Current - IEC	Voltage - IEC	Number of Positions	Voltage - UL	Pitch [x]	Pitch [x]	Type	Features	Material Flammability Rating	Positions Per Level	Color	Housing Material	Number of Levels	Contact Mating Finish	Current - UL	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Mounting Type
Phoenix Contact 1734546	Solder	90° Right Angle	12 A	400 V	24	300 V	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	Mating Flange	UL94 V-0	12	Black	Liquid Crystal Polymer (LCP)	2	Tin	10 A	0.102 in	2.6 mm	20.09 mm	0.791 in	Through Hole
Phoenix Contact 1734313	Solder	90° Right Angle	12 A	400 V	12	300 V	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)		UL94 V-0	6	Black	Liquid Crystal Polymer (LCP)	2	Tin	10 A	0.102 in	2.6 mm	20.09 mm	0.791 in	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 17.08
Sager	N/A	50	$ 20.11
		100	$ 19.38

General part information

Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header

Technical documentation and resources
