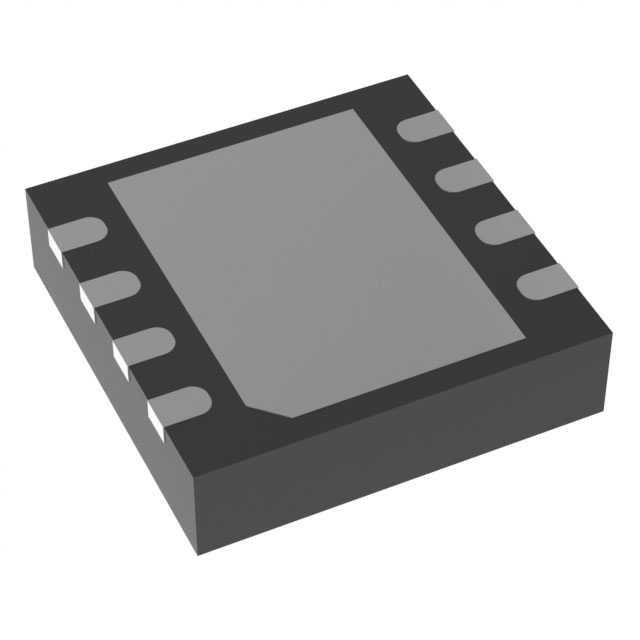

2EDL8024GXUMA1

Active

Infineon Technologies

DRIVER 4A 2-OUT HIGH SIDE/LOW SIDE HALF BRDG NON-INV 8-PIN VDSON EP T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2EDL8024GXUMA1

Active

Infineon Technologies

DRIVER 4A 2-OUT HIGH SIDE/LOW SIDE HALF BRDG NON-INV 8-PIN VDSON EP T/R

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2EDL8024GXUMA1

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	4 A
Driven Configuration	High-Side and Low-Side
Gate Type	N-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	90 V
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	8-VDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	45 ns
Rise / Fall Time (Typ) [custom]	45 ns
Supplier Device Package	PG-VDSON-8-4
Voltage - Supply [Max]	17 V
Voltage - Supply [Min]	8 V

2EDL8024 Series

Part	Supplier Device Package	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Drivers	High Side Voltage - Max (Bootstrap) [Max]	Mounting Type	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Channel Type	Driven Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case
Infineon Technologies 2EDL8024GXUMA1	PG-VDSON-8-4	Non-Inverting	-40 °C	125 ¯C	2	90 V	Surface Mount	N-Channel MOSFET	4 A	4 A	45 ns	45 ns	Independent	High-Side and Low-Side	17 V	8 V	8-VDFN Exposed Pad
Infineon Technologies 2EDL8024G3CXTMA1	PG-VDSON-8-4	Non-Inverting	-40 °C	125 ¯C	2	120 V	Surface Mount	N-Channel MOSFET	4 A	5 A	45 ns	45 ns	Independent	High-Side and Low-Side	17 V	8 V	8-VDFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.84
		10	$ 1.84
		25	$ 1.58
		100	$ 1.28
		250	$ 1.14
		500	$ 1.05
		1000	$ 0.98
		2500	$ 0.90
	Digi-Reel®	1	$ 2.84
		10	$ 1.84
		25	$ 1.58
		100	$ 1.28
		250	$ 1.14
		500	$ 1.05
		1000	$ 0.98
		2500	$ 0.90
	Tape & Reel (TR)	6000	$ 0.80
Newark	Each (Supplied on Cut Tape)	1	$ 1.34
		10	$ 0.97
		25	$ 0.88
		50	$ 0.83
		100	$ 0.78
		250	$ 0.73
		500	$ 0.70
		1000	$ 0.68

Description

General part information

2EDL8024 Series

The EiceDRIVER™ 2EDL8024G dual-channel junction-isolated gate driver IC is designed for medium-voltage power MOSFETs in half-bridge applications such astelecomanddatacomDC-DC converters. This industry-leading 4 A version is recommended to reduce MOSFET switching losses. The 2EDL8024G permits operation of both channels independently. For this reason, it is the perfect choice for diagonally driven full-bridges on the primary side as well as for the synchronous rectification stage on the secondary side because it permits reduction of losses during the free-wheeling phase. All gate driver ICs of theEiceDRIVER™ 2EDL8 familycome in an industry-standard leadless package and pin-out. All of them have an integrated 120 V boot-strap diode as well as a precise channel-to-channel propagation delay matching of +/- 2 ns.
