TR9KH2222CCP-N(R6B)

Active

GlobTek, Inc.

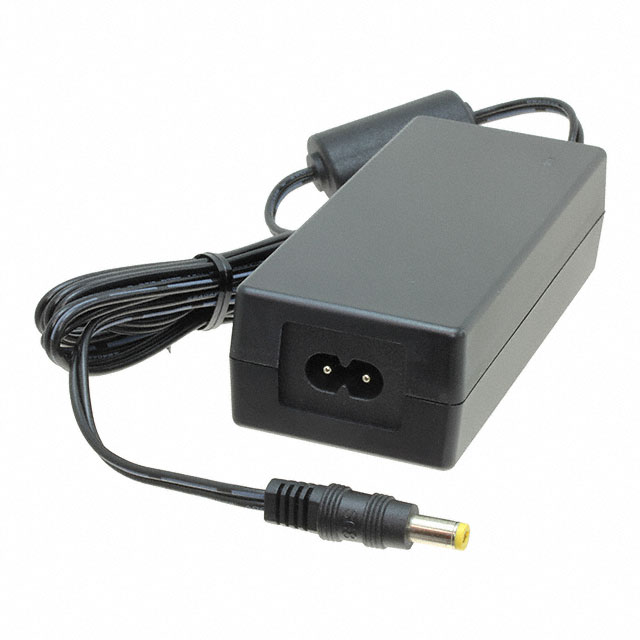

AC/DC DESKTOP ADAPTER 18V 40W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 18V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KH2222CCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	CE, UKRSepro, CB, PSE, LPS, cULus, FCC, VCCI, EAC
Cord Length	48.4 in
Cord Length	1.23 m
Current - Output (Max) [Max]	2.22 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	111 mm
Size / Dimension [x]	4.37 in
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	32.3 mm
Size / Dimension [z]	1.27 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Polarization	Input Type	Output Connector	Output Connector [diameter]	Output Connector [x]	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Form	Cord Length	Cord Length	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Max]	Applications	Region Utilized	Voltage - Output	Standard Number	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Power (Watts)	Output Connector [z]
GlobTek, Inc. TR9KH2222LCP-N(R6B)	Positive Center	Cord	Barrel Plug	2.5 mm 5.5 mm	11 mm	CB CE cULus EAC FCC LPS PSE UKRSepro VCCI	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	Desktop (Class II)	48.4 in	1.23 m	Level VI	2.22 A	40 °C	ITE (Commercial)	International	18 V	60950-1	75 mW	90 VAC	264 VAC	IEC 320-C8	40 W
GlobTek, Inc. TR9KH2222CCP-N(R6B)	Positive Center	Cord	Barrel Plug	2.1 mm 5.5 mm		CB CE cULus EAC FCC LPS PSE UKRSepro VCCI	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	Desktop (Class II)	48.4 in	1.23 m	Level VI	2.22 A	40 °C	ITE (Commercial)	International	18 V	60950-1	75 mW	90 VAC	264 VAC	IEC 320-C8	40 W	11 mm
GlobTek, Inc. TR9KH2222A00-N(R6B)		Cord	Stripped Tinned Wire Leads			CB CE cULus EAC FCC GS PSE UKRSepro VCCI	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	Desktop (Class II)	48.4 in	1.23 m	CoC Tier 2 Level VI	2.22 A	40 °C	ITE (Commercial)	International	18 V		75 mW	90 VAC	264 VAC	IEC 320-C8	40 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18V 40 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
