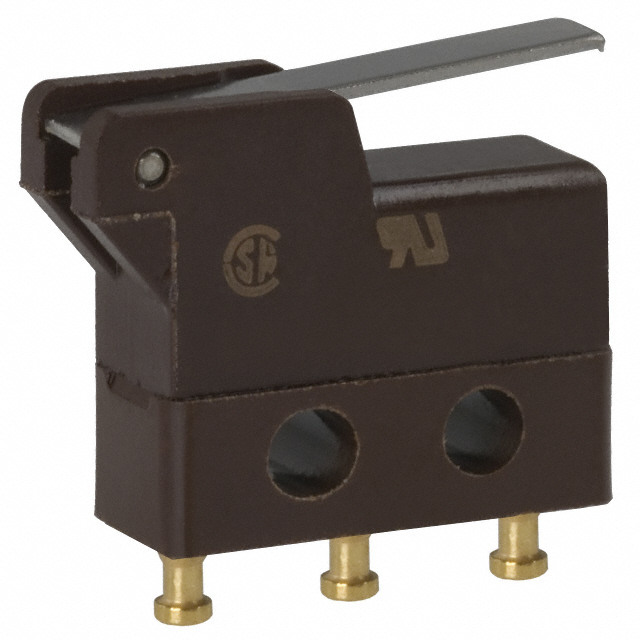

311SX1-T

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current Rating (Amps)	Pretravel	Pretravel	Actuator Type	Overtravel	Overtravel	Voltage Rating - AC	Termination Style	Mechanical Life	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Operating Force	Operating Position	Operating Position	Voltage Rating - DC	Differential Travel	Differential Travel	Circuit
Honeywell Sensing and Productivity Solutions 311SX1-T	Chassis Mount	5 A	1.65 mm	0.065 in	Lever Straight	0.014 in	0.35 mm	125 V	Solder Turret	10000000 Cycles	9.177 gf	-55 °C	125 °C	On-Mom	50 gf	0.332 in	8.43 mm	28 V	0.5 mm	0.02 in	SPDT
Honeywell Sensing and Productivity Solutions 11SX1-T	Chassis Mount	3 A	0.5 mm	0.02 in	Round (Pin Plunger)	0.004 in	0.1 mm	250 V	Solder Turret	10000000 Cycles	21 gf	-55 °C	125 °C	On-Mom	99 gf	0.32 in	8.13 mm	28 V	0.025 mm	0.001 in	SPDT
Honeywell Sensing and Productivity Solutions 11SX1-H58	Chassis Mount	3 A	0.5 mm	0.02 in	Round (Pin Plunger)	0.004 in	0.1 mm	250 V	Quick Connect - 0.058 in (Round)	10000000 Cycles	21 gf	-55 °C	125 °C	On-Mom	99 gf	0.32 in	8.13 mm	28 V	0.025 mm	0.001 in	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
