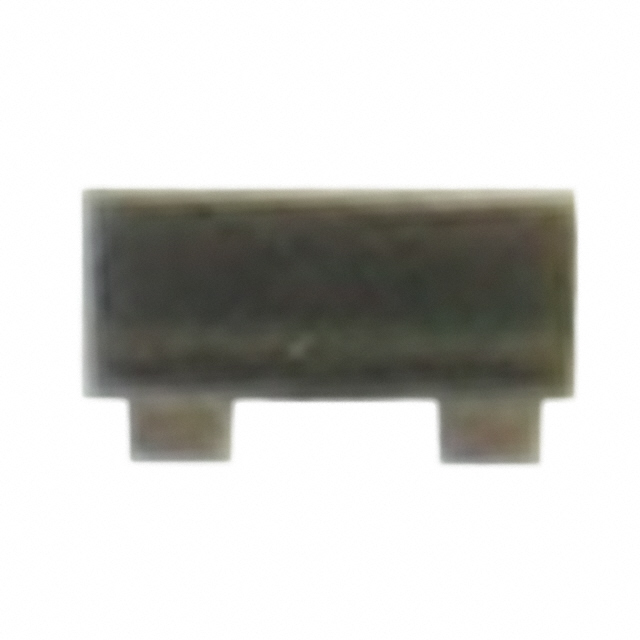

SMS7630-093

Obsolete

Skyworks Solutions Inc.

RF DIODE SCHOTTKY 1V 0201

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

RF DIODE SCHOTTKY 1V 0201

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Diode Type	Package / Case	Voltage - Peak Reverse (Max) [Max]	Power Dissipation (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Max [Max]	Capacitance @ Vr, F	Supplier Device Package	Package / Case
Skyworks Solutions Inc. SMS7630-005LF	SOT-23-3	Schottky - 1 Pair Series Connection	SC-59 SOT-23-3 TO-236-3	1 V	75 mw	-65 °C	150 °C	50 mA
Skyworks Solutions Inc. SMS7630-011LF	SOD-323	Schottky - Single	SC-76 SOD-323	1 V	75 mw	-65 °C	150 °C	50 mA	0.3 pF
Skyworks Solutions Inc. SMS7630-061	0201	Schottky - Single	0201	1 V	75 mw	-65 °C	150 °C	50 mA		0603 Metric	0603 Metric
Skyworks Solutions Inc. SMS7630-079LF	SC-79	Schottky - Single	SC-79 SOD-523	1 V	75 mw	-65 °C	150 °C	50 mA
Skyworks Solutions Inc. SMS7630-093	0201	Schottky	0201	1 V						0603 Metric	0603 Metric
Skyworks Solutions Inc. SMS7630-040LF	0402	Schottky - Single	0402 (1005 Metric)	1 V	250 mW	-65 °C	150 °C	150 mA	0.3 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Diode Schottky 1V 0201 (0603 Metric)
