307-012-558-108

Active

EDAC Inc.

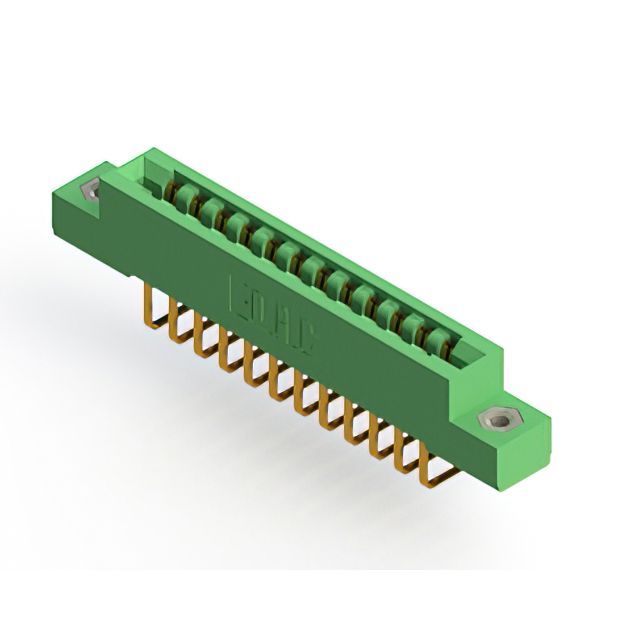

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-012-558-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-012-558-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions/Bay/Row [custom]	12
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-012 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Termination	Termination Rows	Gender	Number of Positions	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Pitch [x]	Pitch [x]	Card Type	Features	Flange Feature	Contact Finish	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-012-545-168	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	1	Single	12	Copper Alloy	Wire Wrap	1	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	Non Specified - Single Edge	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Gold	Semi Bellows
EDAC Inc. 307-012-555-258	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	6	Copper Alloy	Solder Eyelet(s)	2	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening	Gold	Semi Bellows
EDAC Inc. 307-012-556-207	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	6	Copper Alloy	Solder	2	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge	Card Extender	Flush Mount M3 Threaded Insert Top Opening	Gold	Semi Bellows
EDAC Inc. 307-012-541-168	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	12	Copper Alloy	Wire Wrap	1	Female	24	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	Non Specified - Dual Edge	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Gold	Semi Bellows
EDAC Inc. 307-012-556-258	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	6	Copper Alloy	Solder	2	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening	Gold	Semi Bellows
EDAC Inc. 307-012-558-108	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	1	Single	12	Copper Alloy	Solder	1	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	0.156 in	3.96 mm	Non Specified - Single Edge		4-40 Flush Mount Threaded Insert Top Opening	Gold	Semi Bellows
EDAC Inc. 307-012-555-201	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	6	Copper Alloy	Solder Eyelet(s)	2	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge	Card Extender		Gold	Semi Bellows
EDAC Inc. 307-012-459-107	-40 °C	105 ░C	Green			1	Single	12	Copper Alloy	Solder	1	Female	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	0.156 in	3.96 mm	Non Specified - Single Edge		Flush Mount M3 Threaded Insert Top Opening	Tin	Semi Bellows
EDAC Inc. 307-012-554-104	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	12	Copper Alloy	Solder Eyelet(s)	1	Female	24	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Surface Mount	0.156 in	3.96 mm	Non Specified - Dual Edge		Flush Mount Top Opening Unthreaded	Gold	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 307-012-553-101	-40 °C	105 ░C	Green	10 Áin	0.25 Ám	2	Dual	12	Copper Alloy	Solder	1	Female	24	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	0.156 in	3.96 mm	Non Specified - Dual Edge			Gold	Semi Bellows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.93
LCSC	Piece	1	$ 8.17
		200	$ 3.16
		500	$ 3.05
		1000	$ 3.00
Newark	Each	1	$ 13.97
		100	$ 9.33
		250	$ 8.23
		500	$ 7.58
		1000	$ 6.13

Description

General part information

307-012 Series

12 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources
