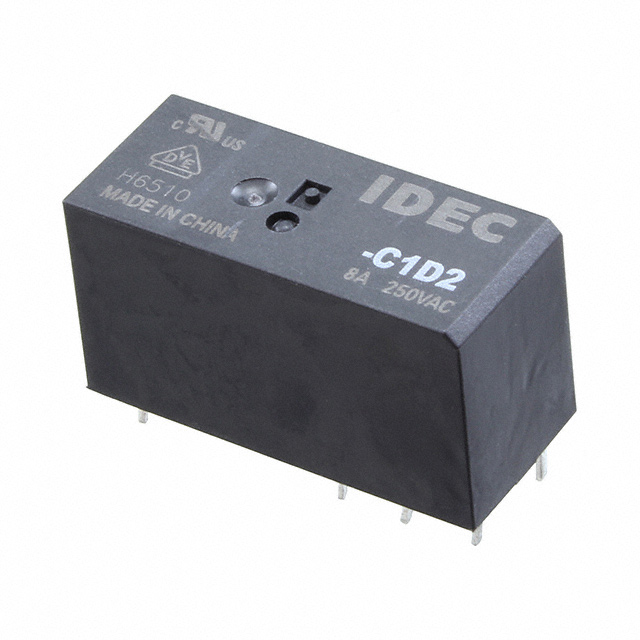

RV2H-2G-D9-C1D2

Obsolete

IDEC

RELAY GENERAL PURPOSE DPDT 8A 9V

Deep-Dive with AI

Search across all available documentation for this part.

RV2H-2G-D9-C1D2

Obsolete

IDEC

RELAY GENERAL PURPOSE DPDT 8A 9V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RV2H-2G-D9-C1D2

Approval Agency	cULus, CE
Coil Current	44 mA
Coil Resistance	205 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A
Mounting Type	Through Hole
Must Operate Voltage	7.2 VDC
Must Release Voltage	0.63 VDC
Operate Time	15 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC
Termination Style	PC Pin

RV2H-2G Series

Part	Contact Material	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Operate Time	Relay Type	Coil Resistance	Coil Type	Termination Style	Mounting Type	Must Release Voltage	Release Time	Must Operate Voltage	Coil Current	Contact Rating (Current)	Approval Agency	Coil Voltage
IDEC RV2H-2G-D5-C1D2	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	55 °C	DPDT (2 Form C)	15 ms	General Purpose	80 Ohms	Non Latching	PC Pin	Through Hole	0.42 VDC	15 ms	4 VDC	75 mA	8 A	CE cULus	5 VDC
IDEC RV2H-2G-D24-C1D2	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	55 °C	DPDT (2 Form C)	15 ms	General Purpose	1.2 kOhms	Non Latching	PC Pin	Through Hole	1.68 VDC	15 ms	19.2 VDC	20 mA	8 A	CE cULus	24 VDC
IDEC RV2H-2G-D9-C1D2	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	55 °C	DPDT (2 Form C)	15 ms	General Purpose	205 Ohms	Non Latching	PC Pin	Through Hole	0.63 VDC	15 ms	7.2 VDC	44 mA	8 A	CE cULus	9 VDC
IDEC RV2H-2G-D18	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	70 °C	DPDT (2 Form C)	15 ms	General Purpose		Non Latching	PC Pin	Through Hole	1.26 VDC	15 ms	14.4 VDC		8 A	CE cULus	18 VDC
IDEC RV2H-2G-D110-C1D2	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	55 °C	DPDT (2 Form C)	15 ms	General Purpose	21.5 kOhms	Non Latching	PC Pin	Through Hole	7.7 VDC	15 ms	88 VDC	5.8 mA	8 A	CE cULus	110 VDC
IDEC RV2H-2G-D60-C1D2	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	55 °C	DPDT (2 Form C)	15 ms	General Purpose	6.67 kOhms	Non Latching	PC Pin	Through Hole		15 ms	48 VDC	9 mA	8 A	CE cULus	60 VDC
IDEC RV2H-2G-D60	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	70 °C	DPDT (2 Form C)	15 ms	General Purpose		Non Latching	PC Pin	Through Hole		15 ms	48 VDC		8 A	CE cULus	60 VDC
IDEC RV2H-2G-D18-C1D2	Gold (Au) Silver Nickel (AgNi)	250 VAC	-40 °C	55 °C	DPDT (2 Form C)	15 ms	General Purpose	750 Ohms	Non Latching	PC Pin	Through Hole	1.26 VDC	15 ms	14.4 VDC	24 mA	8 A	CE cULus	18 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.76
		10	$ 7.65

Description

General part information

RV2H-2G Series

General Purpose Relay DPDT (2 Form C) 9VDC Coil Through Hole
