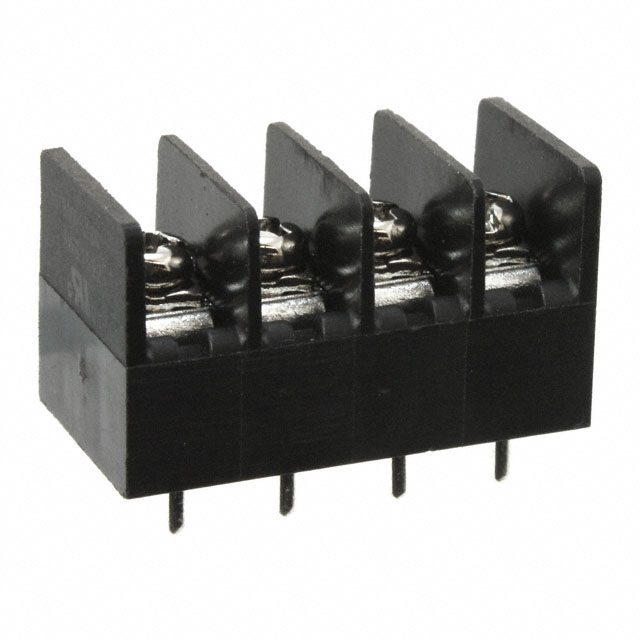

OSTYK21104030
ActiveOn Shore Technology Inc.
CONN BARRIER STRIP 4CIRC 0.25"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTYK21104030
ActiveOn Shore Technology Inc.
CONN BARRIER STRIP 4CIRC 0.25"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTYK21104030 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 10 A |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 250 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.88 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.19 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.84 | |||
| 5000 | $ 0.74 | |||
Description
General part information
OSTYK21 Series
4 Circuit 0.250" (6.35mm) Barrier Block Connector Screws with Captive Plate
