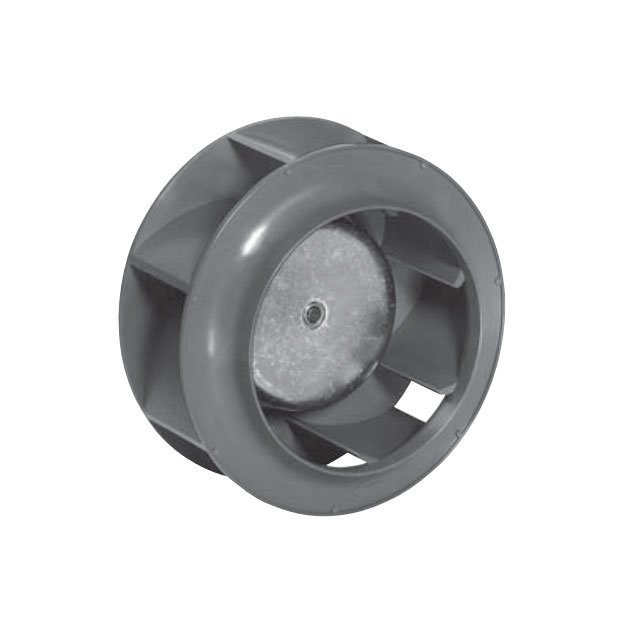

R1G133-AA61-14

Active

ebm-papst Inc.

FAN IMP MTRZD 133X91MM 12VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 133X91MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	R1G133-AA61-14

Air Flow	212 CFM
Air Flow	5.94 m³/min
Approval Agency	CSA, UL
Bearing Type	Ball
Current Rating (Amps)	2.3 A
Fan Type	Motorized Impellers
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP44
Material - Blade	Nylon 6/6, Polyamide (PA66), Fiberglass Reinforced
Noise	63 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	28 W
RPM	3650 RPM
Size / Dimension [diameter]	133 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	12 VDC
Voltage Range [Max]	16 V
Voltage Range [Min]	8 VDC
Width [y]	91 mm

Part	Approval Agency	Termination	Power (Watts)	Material - Blade	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ingress Protection	Current Rating (Amps)	Air Flow	Air Flow	Fan Type	Voltage Range [Min]	Voltage Range [Max]	RPM	Voltage - Rated	Bearing Type	Size / Dimension [diameter]	Noise
ebm-papst Inc. R1G133-AA61-14	CSA UL	4 Wire Leads with Splice Terminals	28 W	Fiberglass Reinforced Nylon 6/6 Polyamide (PA66)	91 mm	-25 °C	60 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	IP44	2.3 A	212 CFM	5.94 m³/min	Motorized Impellers	8 VDC	16 V	3650 RPM	12 VDC	Ball	133 mm	63 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 191.88

General part information

Fan Motorized Impellers 12VDC Round - 133mm Dia Ball 212.0 CFM (5.94mł/min) 4 Wire Leads with Splice Terminals
