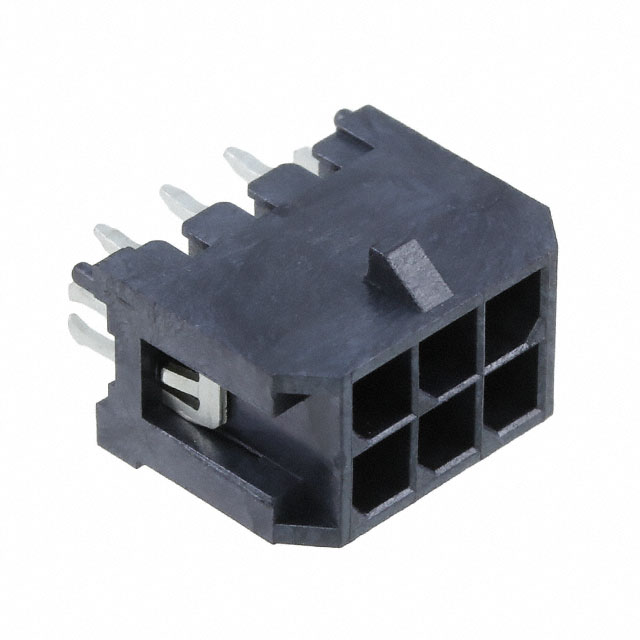

G88MP06102KEU

Active

Amphenol ICC (Commercial Products)

CONN HEADER VERT 6POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G88MP06102KEU

Active

Amphenol ICC (Commercial Products)

CONN HEADER VERT 6POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G88MP06102KEU

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

G88MP Series

Part	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Style	Contact Finish - Post	Current Rating (Amps)	Contact Material	Number of Positions	Connector Type	Fastening Type	Insulation Color	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Number of Rows	Contact Shape	Contact Type	Voltage Rating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Post [x]	Insulation Height	Insulation Height
Amphenol ICC (Commercial Products) G88MP04102CEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	4	Header	Locking Ramp	Black	Board Guide Board Lock	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm	0.083 in	2.11 mm	All
Amphenol ICC (Commercial Products) G88MP18102CEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	18	Header	Locking Ramp	Black	Board Guide Board Lock	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm	0.083 in	2.11 mm	All
Amphenol ICC (Commercial Products) G88MP06102CEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	6	Header	Locking Ramp	Black	Board Guide Board Lock	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm	0.083 in	2.11 mm	All
Amphenol ICC (Commercial Products) G88MP08102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	8	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MP20102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	20	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MPB03002C1EU			-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole Right Angle	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy		Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	1	Square	Male Pin	250 VDC	UL94 V-0			0.118 in	3 mm	0.083 in	2.11 mm	All		4.37 mm	0.172 "
Amphenol ICC (Commercial Products) G88MP22102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	22 positions	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MP06102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	6	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MP02102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	2	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in				3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MPB11002C1EU			-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole Right Angle	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	11	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	1	Square	Male Pin	250 VDC	UL94 V-0			0.118 in	3 mm	0.083 in	2.11 mm	All		4.37 mm	0.172 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.05
		10	$ 0.89
		80	$ 0.80
		465	$ 0.65
		1395	$ 0.58
		5115	$ 0.51
		10230	$ 0.48

Description

General part information

G88MP Series

Connector Header Through Hole 6 position 0.118" (3.00mm)
