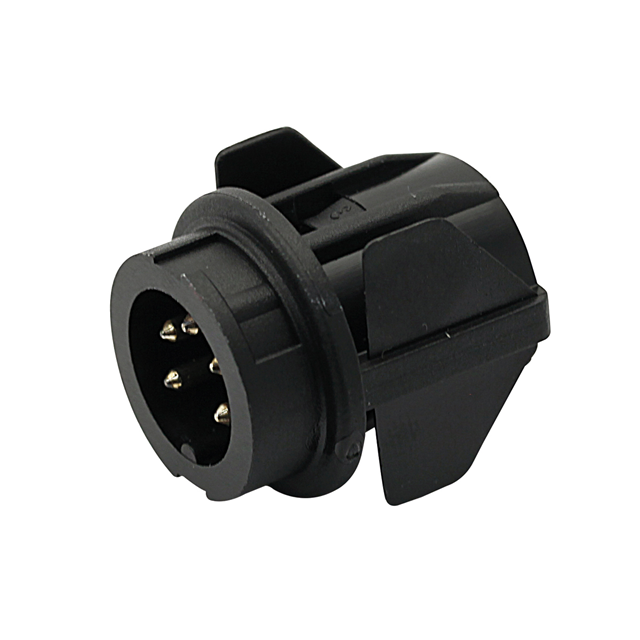

T 3526 500

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Technical Specifications

Parameters and characteristics for this part

Specification	T 3526 500

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M16-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Primary Material	Connector Type	Shell Material	Insert Material	Fastening Type	Color	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating	Ingress Protection	Applications	Orientation	Shielding	Shell Size - Insert	Termination	Contact Finish - Mating
Amphenol Sine Systems Corp T 3526 500	Plastic	Male Pins Receptacle	Plastic	Thermoplastic	Bayonet Lock	Black	8	7 A	UL94 V-0	100 °C	-40 °C	Panel Mount Snap-In	250 VDC	IP40	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Keyed	Unshielded	M16-8	Solder	Silver
Amphenol Sine Systems Corp T 3526 518	Plastic	Male Pins Receptacle	Plastic	Thermoplastic	Bayonet Lock	Black	8	7 A	UL94 V-0	100 °C	-40 °C	Panel Mount Snap-In	250 VDC	IP40	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Keyed	Unshielded	M16-8	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.46

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
