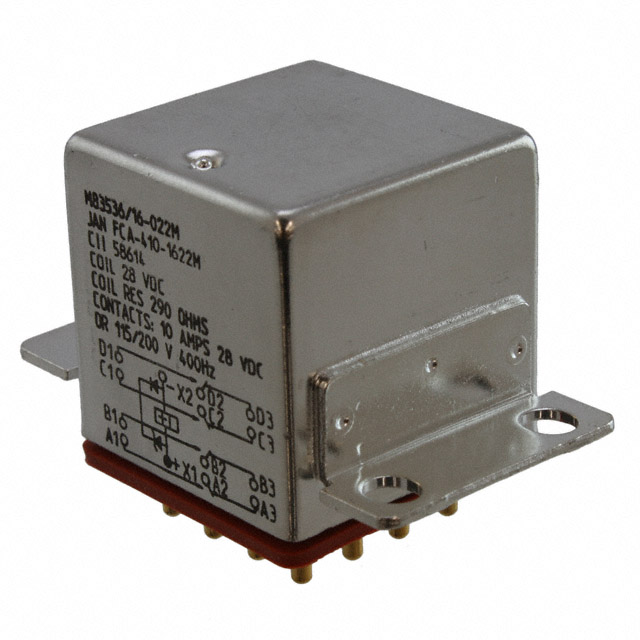

FCA-410-1622M
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE 4PDT 10A 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FCA-410-1622M
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE 4PDT 10A 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FCA-410-1622M |
|---|---|
| Coil Current | 96.6 mA |
| Coil Resistance | 290 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Grade | Military |
| Load - Max Switching | 1150 VA, 280 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 28 VDC, 115 VAC |
| Termination Style | Plug In |
1617754 Series
| Part | Contact Rating (Current) | Mounting Type | Operate Time | Termination Style | Release Time | Relay Type | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Seal Rating | Switching Voltage | Load - Max Switching | Contact Material | Coil Type | Coil Current | Contact Form | Coil Resistance | Grade | Coil Voltage | Must Operate Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | Solder Hook | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | Military | 28 VDC | 18 VDC | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Through Hole | PC Pin | General Purpose | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 4PDT (4 Form C) | Diode | ||||||||
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | Plug In | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | Military | 28 VDC | 18 VDC | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | PC Pin | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | 28 VDC | 18 VDC | Diode | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | Solder Hook | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | Military | 28 VDC | 18 VDC | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | Solder Hook | 15 ms | General Purpose | 2.3 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | 28 VDC | 13.5 VDC | ||
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | PC Pin | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | 28 VDC | 18 VDC | Diode | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | PC Pin | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | 28 VDC | 18 VDC | Diode | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Chassis Mount | 15 ms | PC Pin | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | 28 VDC | 18 VDC | Diode | |
TE Connectivity Aerospace, Defense and Marine | 10 A | Through Hole | 15 ms | PC Pin | 15 ms | General Purpose | 1.5 VDC | 125 °C | -70 °C | Sealed - Hermetically | 28 VDC 115 VAC | 280 W 1150 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96.6 mA | 4PDT (4 Form C) | 290 Ohms | 28 VDC | 18 VDC | Diode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 361.10 | |
| 10 | $ 315.43 | |||
| 25 | $ 298.90 | |||
Description
General part information
1617754 Series
General Purpose Relay 4PDT (4 Form C) 28VDC Coil Chassis Mount
