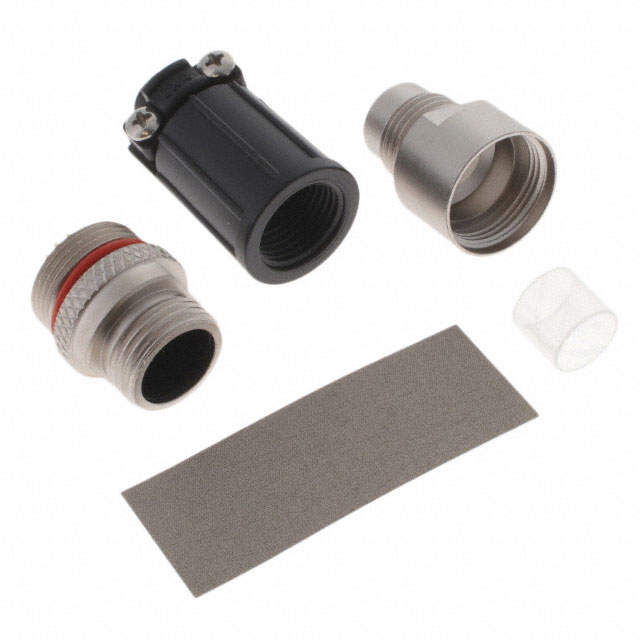

SF8982-18PG-530

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SF8982-18PG-530

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.33 in
Cable Opening [custom]	8.38 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Cable Clamp, Backshell
Ingress Protection	IP66/IP68
Insert Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded

Part	Backshell Material, Plating	Features	Contact Finish - Mating	Color	Insert Material	Shell Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Ingress Protection	Shielding	Primary Material	Contact Material	Orientation
Conxall/Switchcraft SF8982-18PG-530	Nylon Polyamide (PA)	Backshell Cable Clamp	Gold	Black Silver	Polybutylene Terephthalate (PBT)	Brass	Nickel	-40 °C	120 °C	Male Pins Receptacle	Free Hanging (In-Line)	0.33 in	8.38 mm	18	IP66/IP68	Shielded	Metal	Copper Alloy	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder Cup
