R222900310W

Active

Radiall USA, Inc.

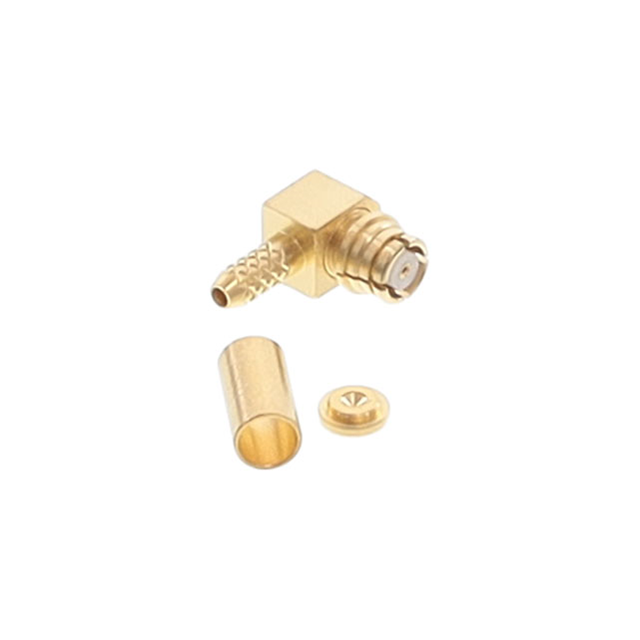

SMP / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R222900310W

Active

Radiall USA, Inc.

SMP / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R222900310W

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

R22290 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Fastening Type	Connector Type	Mounting Type	Contact Termination	Number of Ports	Impedance	Center Contact Material	Cable Group	Cable Group	Shield Termination	Housing Color	Body Finish	Dielectric Material	Body Material	Center Contact Plating	Frequency - Max [Max]	Insertion Loss	Features
Radiall USA, Inc. R222900100W	-55 °C	125 °C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line)	Crimp	1	50 Ohms	Beryllium Copper	196	RG-178	Crimp	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900320	-55 °C	125 °C	335 V	Snap-On	Female Socket Plug	Free Hanging (In-Line) Right Angle	Crimp	1	50 Ohms	Beryllium Copper		316 RG-174	Crimp	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900130	-55 °C	125 °C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line)	Crimp	1	50 Ohms	Beryllium Copper		188 316 RG-174	Crimp	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900140	-55 °C	125 °C	250 VDC	Snap-On	Female Socket Jack	Free Hanging (In-Line)	Crimp	1	50 Ohms	Beryllium Copper		RD-316	Crimp			Polytetrafluoroethylene (PTFE)	Brass		12.4 GHz	0.12 dB
Radiall USA, Inc. R222900310W	-55 °C	125 °C	335 V	Snap-On	Female Socket Plug	Free Hanging (In-Line) Right Angle	Crimp	1	50 Ohms	Beryllium Copper	196	RG-178	Crimp	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900340	-55 °C	105 ░C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line) Right Angle	Solder	1	50 Ohms	Beryllium Copper		RG-405 (.085" Semi Rigid)	Solder	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900340W	-55 °C	105 ░C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line) Right Angle	Solder	1	50 Ohms	Beryllium Copper		RG-405 (.085" Semi Rigid)	Solder	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900100	-55 °C	125 °C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line)	Crimp	1	50 Ohms	Beryllium Copper	196	RG-178	Crimp	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz
Radiall USA, Inc. R222900417	-55 °C	125 °C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line) Right Angle	Crimp	1	50 Ohms	Beryllium Copper		TCE2H2	Crimp	Silver	White Bronze	Polytetrafluoroethylene (PTFE)	Bronze	Gold	12.4 GHz		Non-Magnetic
Radiall USA, Inc. R222900310	-55 °C	125 °C	250 VDC	Snap-On	Female Socket Plug	Free Hanging (In-Line) Right Angle	Crimp	1	50 Ohms	Beryllium Copper	196	RG-178	Crimp	Gold	Gold	Polytetrafluoroethylene (PTFE)	Brass	Gold	12.4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.01
		10	$ 8.88
		25	$ 8.53
		50	$ 8.19
		100	$ 8.01

Description

General part information

R22290 Series

SMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
