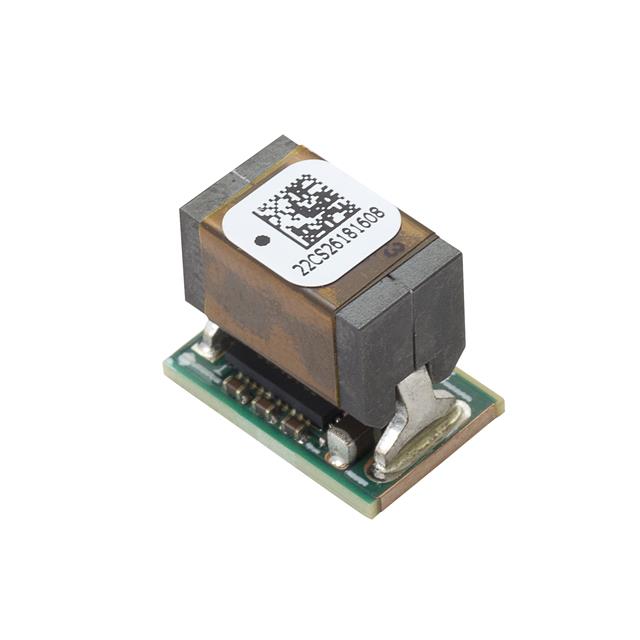

SLX040A0XY3-SRZ

Active

OmniOn Power™

NON-ISOLATED DC/DC CONVERTERS 40A 0.45-2.0V, SATELLITE MODULE POL NON-ISO

Search across all available documentation for this part.

Active

OmniOn Power™

NON-ISOLATED DC/DC CONVERTERS 40A 0.45-2.0V, SATELLITE MODULE POL NON-ISO

Technical Specifications

Parameters and characteristics for this part

Specification	SLX040A0XY3-SRZ

Applications	ITE (Commercial)
Approval Agency	UL, VDE, CSA
Current - Output (Max) [Max]	40 A
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Standard Number	62368-1
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	7 V

Non-Isolated DC/DC Converters 40A 0.45-2.0V, SATELLITE MODULE POL Non-Iso

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Applications	Features	Voltage - Input (Min) [Min]	Standard Number	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
OmniOn Power™ SLX040A0XY3-SRZ	40 A	14 V	ITE (Commercial)	Adjustable Output PMBus™ Remote On/Off Remote Sense	7 V	62368-1	Surface Mount	85 °C	-40 °C	CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 40A 0.45-2.0V, SATELLITE MODULE POL Non-Iso
