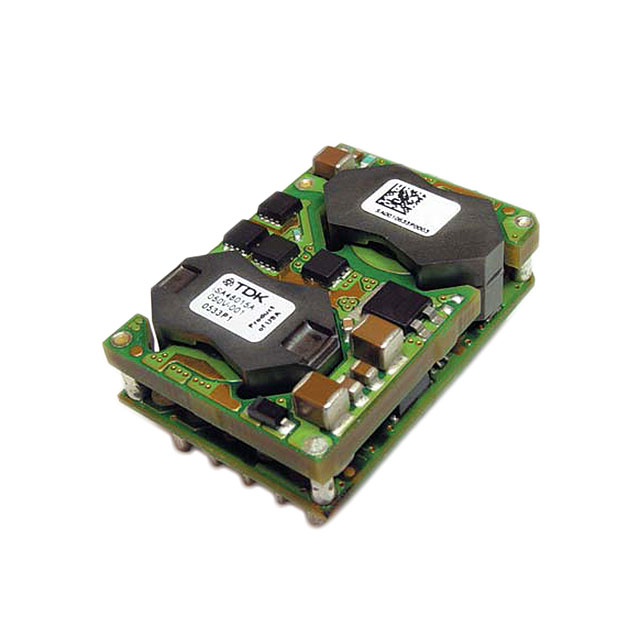

ISA48025A033V-001-R

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIXTEENTH BRICK, DOSA, 82.5 W, 1 OUTPUT, 3.3 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ISA48025A033V-001-R

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIXTEENTH BRICK, DOSA, 82.5 W, 1 OUTPUT, 3.3 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISA48025A033V-001-R

Applications	ITE (Commercial)
Current - Output (Max) [Max]	25 A
Efficiency	88 %
Features	OCP, OVP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	83 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

ISA48025 Series

Part	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Mounting Type	Voltage - Input (Max) [Max]	Features	Supplier Device Package	Number of Outputs	Package / Case	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 1
TDK-LAMBDA ISA48025A025V-001-R	Isolated Module	36 V	25 A	1.5 kV	Through Hole	75 V	OCP OVP Remote On/Off	Sixteenth Brick	1	Sixteenth Brick	85 %	63 W	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	125 °C	-40 °C	ITE (Commercial)	2.5 V
TDK-LAMBDA ISA48025A033V-001-R	Isolated Module	36 V	25 A	1.5 kV	Through Hole	75 V	OCP OVP Remote On/Off	Sixteenth Brick	1	Sixteenth Brick	88 %	83 W	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	125 °C	-40 °C	ITE (Commercial)	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 74.15
		5	$ 69.91
		10	$ 68.15
		25	$ 65.90
		40	$ 64.78
		80	$ 63.15
Newark	Each	1	$ 53.33

Description

General part information

ISA48025 Series

ISA48025A033V-001-R is an iSA series sixteenth brick converter. It includes overload, overvoltage protection. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
