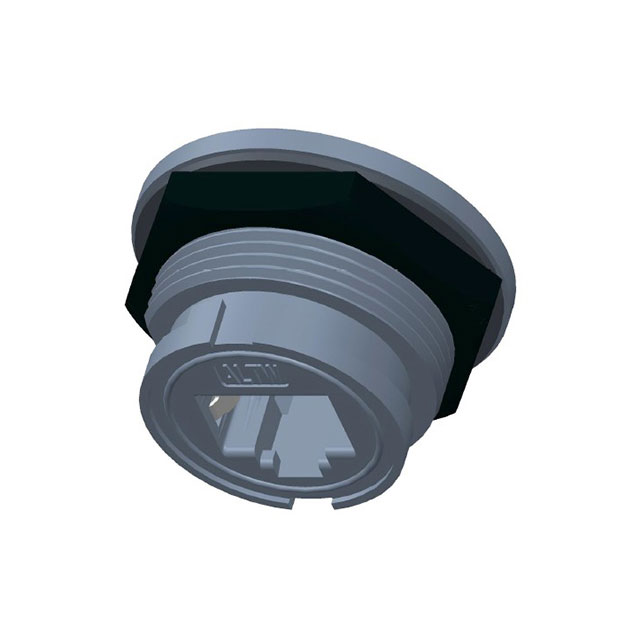

RJS-5EPFFP-LC7002

Active

Amphenol LTW

RJ45 PANEL LOCK F CONN F PIN

Search across all available documentation for this part.

Active

Amphenol LTW

RJ45 PANEL LOCK F CONN F PIN

Technical Specifications

Parameters and characteristics for this part

Specification	RJS-5EPFFP-LC7002

Connector Type	Jack
Contact Finish	Gold
Features	Circular Threaded Coupling
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	User Selectable
Ratings	Cat5e
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Housing Material	Contact Finish	Shielding	Number of Ports	Connector Type	Ratings	Mounting Type	LED Color	Features	Tab Direction	Ingress Protection	Number of Rows	Orientation	Number of Positions/Contacts	Termination	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW RJS-5EPFFP-LC7002	Polyamide (PA) Nylon Glass Filled	Gold	Shielded	1	Jack	Cat5e	Bulkhead Panel Mount	Does Not Contain LED	Circular Threaded Coupling	User Selectable	IP67 - Dust Tight Waterproof	1	User Selectable	8p8c (RJ45 Ethernet)	Solder	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) User Selectable Shielded Cat5e

Technical documentation and resources
