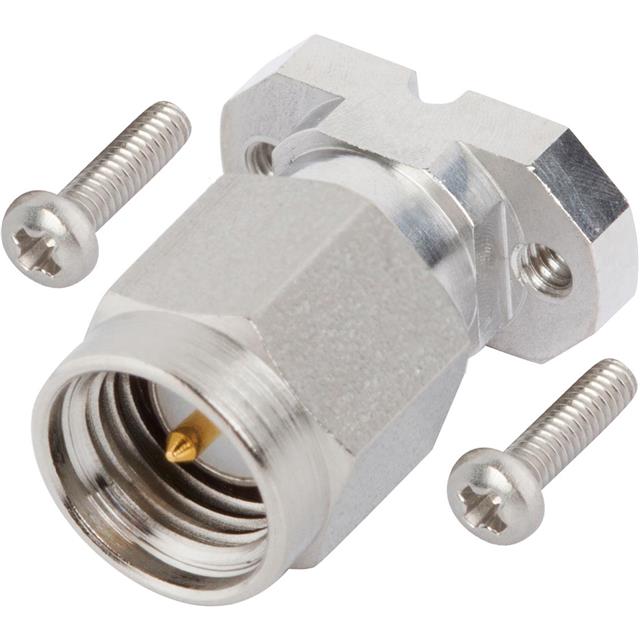

SF2911-60973-2S

Active

Amphenol SV Microwave

SMA MALE SOLDERLESS PCB COMPRESS

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA MALE SOLDERLESS PCB COMPRESS

Technical Specifications

Parameters and characteristics for this part

Specification	SF2911-60973-2S

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

Part	Frequency - Max [Max]	Housing Color	Contact Termination	Features	Impedance	Center Contact Plating	Connector Type	Mating Cycles	Number of Ports	Shield Termination	Insertion Loss	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Dielectric Material	Body Material	Includes	Mounting Type	Cable Group	Cable Group	Mounting Feature
Amphenol SV Microwave SF2911-60958	26.5 GHz	Silver	Compression	Mounting Hardware	50 Ohms	Gold	Male Pin Plug	500	1	Screw	0.154 dB	SMA	-65 ░C	165 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	1 Connector 2 Screws	Board Edge End Launch
Amphenol SV Microwave SF2911-60172	18 GHz	Silver	Solder		50 Ohms	Gold	Male Pin Plug	500	1	Solder		SMA			Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel		Free Hanging (In-Line)	Flexible	0.047 in
Amphenol SV Microwave SF2911-60973-2S	26.5 GHz	Silver	Compression	Mounting Hardware	50 Ohms	Gold	Male Pin Plug	500		Screw		SMA	-65 ░C	165 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel		Surface Mount			Flange
Amphenol SV Microwave SF2911-60973-1S	26.5 GHz	Silver	Compression	Mounting Hardware	50 Ohms	Gold	Male Pin Plug	500		Screw		SMA	-65 ░C	165 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel		Surface Mount			Flange
Amphenol SV Microwave SF2911-60242		Silver	Solder		50 Ohms		Male Pin Plug	500	1	Solder		SMA							Free Hanging (In-Line)		0.065 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Surface Mount Compression
