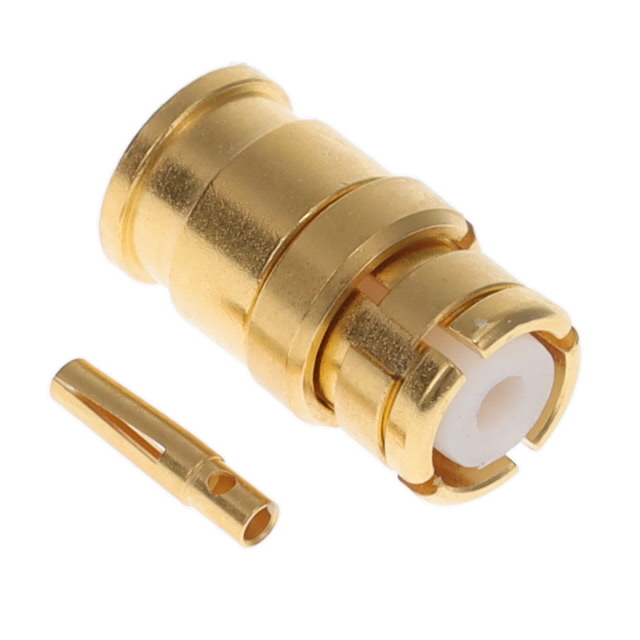

R222052000

Active

Radiall USA, Inc.

SMP / STRAIGHT FEMALE PLUG SOLDE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMP / STRAIGHT FEMALE PLUG SOLDE

Technical Specifications

Parameters and characteristics for this part

Specification	R222052000

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Shield Termination	Center Contact Material	Dielectric Material	Housing Color	Body Material	Impedance	Connector Type	Body Finish	Mating Cycles	Fastening Type	Contact Termination	Cable Group	Mounting Type	Voltage Rating	Number of Ports	Frequency - Max [Max]	Cable Group
Radiall USA, Inc. R222052000	-65 ░C	165 °C	Gold	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohms	Female Socket Plug	Gold	1000	Snap-On	Solder	RG-405 (.085" Semi Rigid)	Free Hanging (In-Line)	335 V	1	40 GHz
Radiall USA, Inc. R222051000W	-65 ░C	165 °C	Gold	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohms	Female Socket Plug	Gold		Snap-On	Solder	Semi Rigid	Free Hanging (In-Line)	335 V	1	40 GHz	0.047 in
Radiall USA, Inc. R222052000W	-65 ░C	165 °C	Gold	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohms	Female Socket Plug	Gold		Snap-On	Solder	RG-405 (.085" Semi Rigid)	Free Hanging (In-Line)	335 V	1	40 GHz
Radiall USA, Inc. R222051000	-65 ░C	165 °C	Gold	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	50 Ohms	Female Socket Plug	Gold		Snap-On	Solder	Semi Rigid	Free Hanging (In-Line)	335 V	1	40 GHz	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
