APH-SMAF-AFIM

Active

Amphenol RF

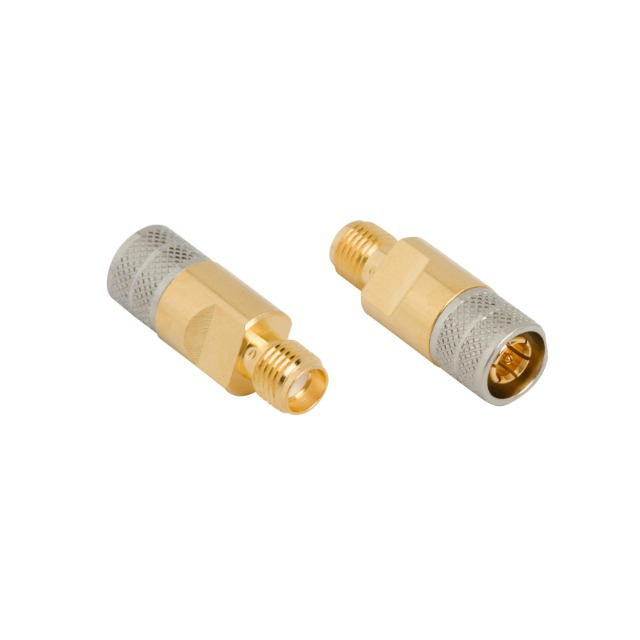

SMA JACK TO AFI PLUG ADAPTER 50 OHM STRAIGHT

Search across all available documentation for this part.

Active

Amphenol RF

SMA JACK TO AFI PLUG ADAPTER 50 OHM STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	APH-SMAF-AFIM

Adapter Series	SMA to AFI
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, AFI Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Adapter Series	Fastening Type	Convert From (Adapter End)	Body Material	Mating Cycles	Frequency - Max [Max]	Conversion Type	Center Contact Material	Dielectric Material	Adapter Type	Impedance	Mounting Type
Amphenol RF APH-SMAF-AFIM	AFI Plug Male Pin	Straight	-65 ░C	165 °C	Gold	Gold	SMA to AFI	Snap-On Threaded	Female Socket SMA Jack	Brass	500	6000 MHz	Between Series	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To AFI Plug, Male Pin 50 Ohms
